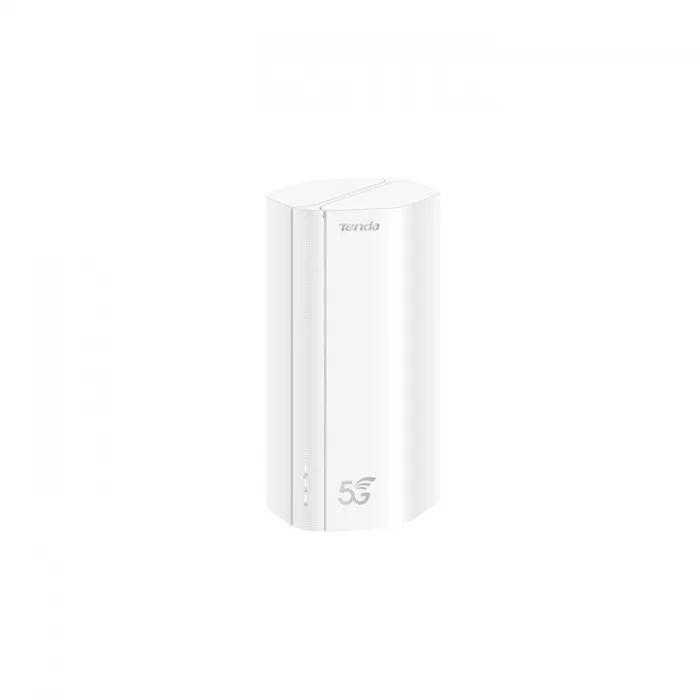

Tenda Tenda 5G01 AX1500
Cellular Technologies 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA
5G NR 3GPP Release 15
5G NR Peak Download Speed SA: 2 Gbps, NSA: 2.2Gbps
5G NR Peak Upload Speed SA: 1 Gbps, NSA: 575Mbps
NR Frequency Band 5G SA NR(Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78)
5G NSA NR(Bands n1, n3, n7, n38, n40, n41, n66, n77, n78)
FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 20, 28)
TDD-LTE (Bands 38, 40, 41, 66)
WCDMA (850, 900, 1900, 2100 MHz)
5G NR Download Modulation n1/n41/n77/n78 4*4 MIMO
n28 22 MIMO
5G NR Upload Modulation 256QAM
Wireless Connectivity Wi‑Fi 6 (802.11ax) with 2×2 MIMO
Wi-Fi speed 300Mbps on 2.4 GHz
1201Mbps on 5 GHz
Wi-Fi standards 802.11b/g/n, 802.11ac, 802.11AX
Wi-Fi frequency 2.4GHz, 5GHz
Wi-Fi transmit Power 2.5GHz: up to 20dBm
5GHz: up to 23dBm
Ethernet Ports 1 × 10/100/1000 Mbps LAN/WAN Port
1 × 10/100/1000 Mbps LAN Port
SIM Card 1 × Nano-SIM(4FF) Card Slot
Button 1 × Power on/off
1 × RST hole
1 × Mesh
Antennas and Ports 4 × Internal 5G/4G Antennas
2 × Internal Wi-Fi Antennas
WAN Type 4G/5G or Wired
5G/4G Features Auto-APN
5G SA/NSA dual mode
Auto dial-up
5G Location optimization
Roaming
SMS(Send/Receive/Delete)
USSD
Data limted
PIN Management
Wi-Fi functions WPS
Wi-Fi security WPA3-SAE/WPA2-PSK, WPA2-PSK
Software features Wi-Fi+ (Mesh)
Parental control
DHCP(DHCP Server and Client)
Guest Wi-Fi
Upgrade firmware from local or OTA
IPV4/IPV6 dual stack
Local/remote management
TR069
Temperature Operating Temperature: 0C~40C
Storage Temperature: -30C~70C
Humidity Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensing
Contents 1 5G NR Router
1 Ethernet cable
1 Power adapter
1 User Guide
