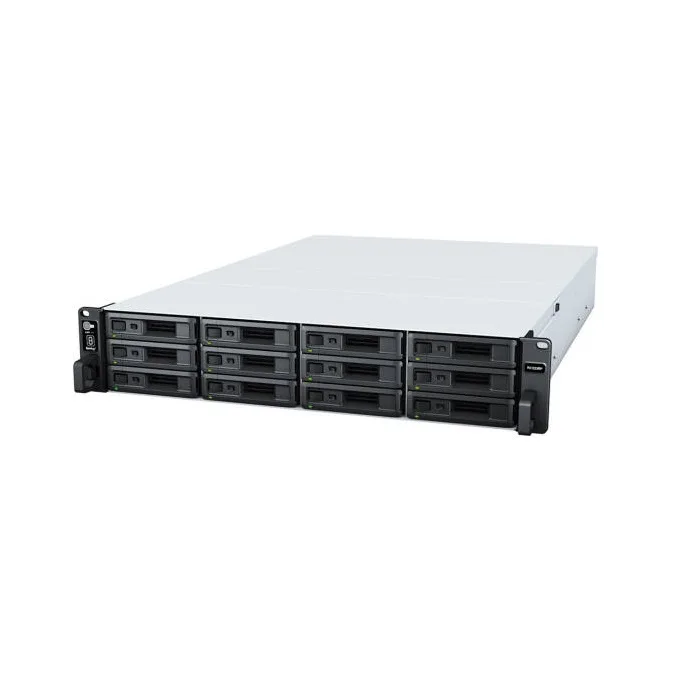

Synology Synology RX1223RP
Specifications
Applied Models SA series: SA6400
23 series: RS2423RP+, RS2423+
Supports Creating Volumes Across Yes
Storage
Drive Bays 12
Compatible Drive Type* 3.5″ SATA HDD
2.5″ SATA SSD
Hot Swappable Drive* Yes
RAID Management through Synology DSM Yes
External Ports Expansion Port: 1
Appearance
Size (H x W x D) 88 mm x 430.5 mm x 692 mm
Size (H x W x D) (with server ears) 88 mm x 482 mm x 724 mm
Weight 13.9 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 550 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 93.59 W (Access)
30.73 W (HDD Hibernation)
British Thermal Unit 319.34 BTU/hr (Access)
104.86 BTU/hr (HDD Hibernation)
Redundant Power Supply (for RP model) No
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan Yes
Noise Level* 54.3 dB(A)
Certification UL, FCC, CE, BSMI, UKCA, EAC, VCCI, RCM, KC
Environment & Packaging
Environment RoHS Compliant
Packaging Content
Main Unit x1
Accessory Pack x1
AC Power Cord x2
Expansion Cable: MiniSAS-HD x1
Quick Installation Guide x1
Optional Accessories
3.5″ SATA HDD HAT5300/HAT3300
2.5″ SATA SSD SAT5210
Rail Kit Sliding RKS-02
