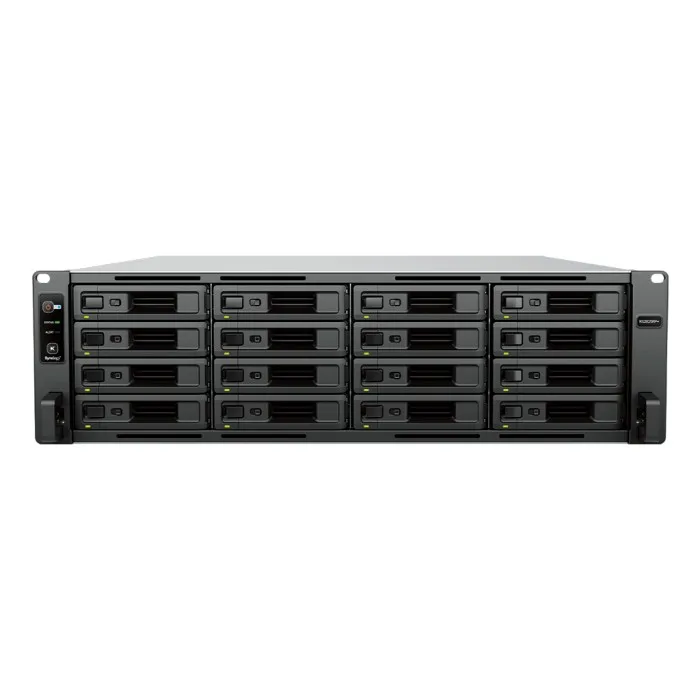

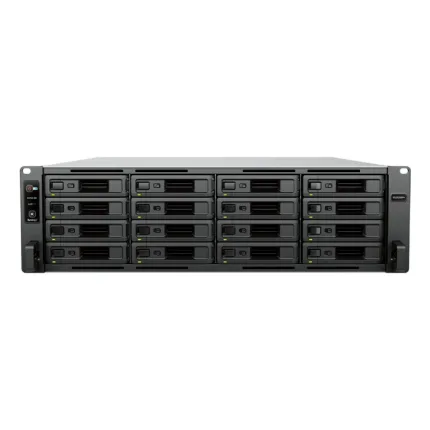

Synology Synology RS2825RP+
| Synology 16-Bay Rackmount NAS (AMD Ryzen V1780B) | |
|---|---|
| CPU | |
| Model | AMD Ryzen V1780B |
| Quantity | 1 |
| Core | 4 |
| Architecture | 64-bit |
| Frequency | 3.35 GHz (base) / 3.6 GHz (turbo) |
| Hardware Encryption Engine | Yes |
| Memory | |
| System Memory | 8 GB DDR4 ECC UDIMM |
| Pre-installed | 8 GB (1 x 8 GB) |
| Total Slots | 2 |
| Maximum Capacity | 32 GB (2 x 16 GB) |
| Notes | Use Synology memory for compatibility and warranty. Modules must match for dual configs. |
| Storage | |
| Drive Bays | 16 |
| Max Bays with Expansion | 28 (with RX1225RP) |
| Drive Types | 3.5″ SATA HDD, 2.5″ SATA SSD |
| Hot Swappable | Yes |
| Notes | Synology-compatible drives required for full functionality. See compatibility list. |
| External Ports | |
| 1GbE LAN Ports | 2 |
| 10GbE LAN Port | 1 |
| USB 3.2 Gen 1 Ports | 2 |
| Expansion Port | 1 × Mini-SAS HD |
| MTU (1GbE) | 1,500 bytes |
| PCIe Expansion | |
| Slot | 1 × Gen3 x8 (x4 link) |
| Physical Specifications | |
| Form Factor | 3U Rackmount |
| Dimensions (H × W × D) | 132.3 × 482 × 656.5 mm |
| Weight | 17.3 kg |
| Rack Compatibility | 4-post 19″ rack (RKS-02, sold separately) |
| Cooling & Power | |
| System Fans | 3 × 80 mm |
| Fan Modes | Full-Speed, Cool, Quiet |
| Easy Fan Replacement | Yes |
| Power Recovery | Yes |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Noise Level | 49.6 dB(A) |
| Power Supply | 550 W Redundant PSU |
| AC Input Voltage | 100–240 V AC |
| Power Frequency | 50/60 Hz |
| Power Consumption | 134.48 W (Access), 50.81 W (HDD Hibernation) |
| BTU/hr | 459.17 (Access), 173.49 (Hibernation) |
| Environmental Conditions | |
| Operating Temp | 0°C to 35°C |
| Storage Temp | -20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certifications | |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, UL |
| Environmental Compliance | |
| RoHS Compliant | Yes |
| Packaging Contents | |
| Main Unit | 1 |
| Accessory Pack | 1 |
| AC Power Cords | 2 |
| Optional Accessories | |
| Memory Modules | DDR4 ECC UDIMM (D4EU02-8G / D4EU02-16G) |
| Expansion Unit | RX1225RP |
| Enterprise 3.5″ SATA HDD | HAT5300 Series |
| Plus 3.5″ SATA HDD | HAT3300 Series |
| Enterprise 2.5″ SATA SSD | SAT5200 Series |
| M.2 SSD & 10GbE Adapter | E10M20-T1 |
| M.2 SSD Adapter | M2D20 |
| 25GbE NIC | E25G30-F2 |
| 10GbE NICs | E10G30-F2, E10G30-T2, E10G18-T1 |
| Rack Rail Kit | RKS-02 (Sliding) |
