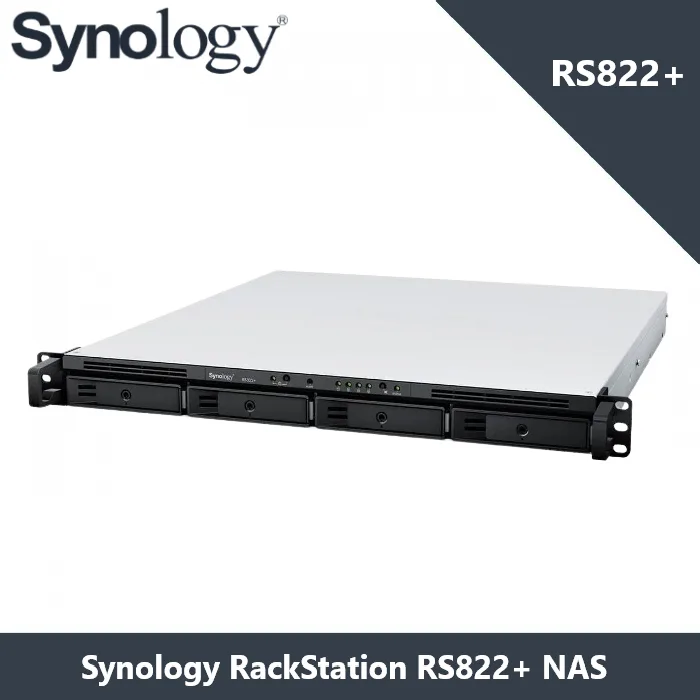

Synology Synology RS822+
CPU AMD Ryzenâ„¢ V1500B quad-core (8-thread) 2.2 GHz
Hardware encryption engine AES-NI
Memory 2 GB DDR4 ECC SODIMM (expandable up to 32 GB)
Compatible drive types • 4 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
• Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list5
Hot swappable drives Yes
External ports • 2 x USB 3.2 Gen 1 ports
• 1 x Expansion port (eSATA)
Form factor Rackmount 1U
Size (HxWxD) • RS822+: 44 x 430.5 x 457.6 mm/44 x 480 x 492.6 mm (with server handles)
• RS822RP+: 44 x 430.5 x 483.6 mm/44 x 480 x 518.6 mm (with server handles)
Weight • RS822+: 6.4 kg
• RS822RP+: 8.0 kg
LAN ports 4 x 1GbE RJ-45
Wake on LAN/WAN Yes
PCIe expansion • 1 x Gen3 4-lane x8 slot
• High-performance network interface card support
• M.2 NVMe/SATA SSD adapter card support
Scheduled power on/off Yes
System fans • RS822+: 3 x (40 x 40 x 20 mm)
• RS822RP+: 2 x (40 x 40 x 20 mm)
AC input power voltage 100 V to 240 V AC
Power frequency 50/60 Hz, single phase
Operating environment • Temperature: 0°C to 35°C (32°F to 95°F)
• Relative humidity: 8% to 80% RH
Storage environment • Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
