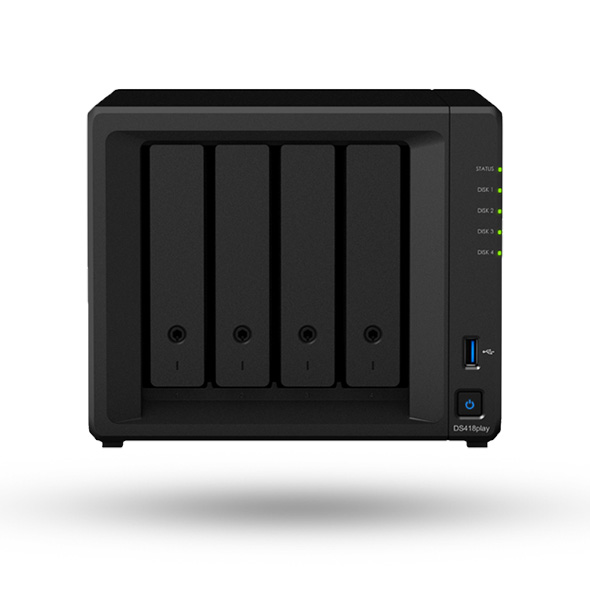

NAS BOX SYNOLOGY DS418 PLAY
Massive storage capacity with 4K Ultra HD capability
Synology DS418play is?designed?to be your ideal, centralized multimedia hub with over 40TB of raw storage capacity, allowing you to transcode up to 2 channels of H.265/H.264 4K videos at the same time. With a powerful built-in AES-NI hardware encryption engine, DS418play also provides excellent encrypted file transmission.
CPU
|
Dual-core 2GHz burst up to 2.5GHz |
Network
|
Dual 1GbE LAN ports |
Memory
|
2GB DDR3L, scalable up to 6GB
|
Performance
|
Over 226 MB/s and 185 MB/s encrypted sequential reading and writing
|
Specification
CPU
| CPU Model |
Intel Celeron J3355 |
| CPU Architecture |
64-bit |
| CPU Frequency |
Dual Core 2.0 burst up to 2.5 GHz |
| Hardware Encryption Engine (AES-NI) |
 |
| Hardware Transcoding Engine |
H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30 |
Memory???????
| System Memory |
2 GB DDR3L |
| Memory Module Pre-installed |
2 GB (2 GB x 1) |
| Total Memory Slots |
2 |
| Memory Expandable up to |
6 GB (2 GB + 4 GB) |
| Notes |
- Synology reserves the right to replace memory modules with the same or higher frequency based on supplier?s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
|
Storage???????????
| Drive Bays |
4 |
| Compatible Drive Type*?(See all supported drives) |
- 3.5? SATA HDD
- 2.5? SATA HDD
- 2.5? SATA SSD
|
| Maximum Internal Raw Capacity |
56 TB (14 TB drive x 4) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
108 TB |
| Hot Swappable Drive |
|
| Notes |
- ?Compatible drive type? indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
- The maximum single volume size is not directly related to the maximum raw capacity.?(Learn more)
- Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB.
|
External Ports???????
| RJ-45 1GbE LAN Port |
2 (with Link Aggregation / Failover support) |
| USB 3.0 Port |
2 |
File System???????????
| Internal Drives |
|
| External Drives |
- Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT*
|
| Notes |
exFAT Access is purchased separately in Package Center. |
Appearance???????????
| Size (Height x Width x Depth) |
166 mm x 199 mm x 223 mm |
| Weight |
2.23 kg |
Others???????????
| System Fan |
92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
- Full-Speed Mode
- Cool Mode
- Quiet Mode
|
| Brightness adjustable front LED indicators |
|
| Power Recovery |
|
| Noise Level* |
20.5 dB(A) |
| Scheduled Power On/Off |
|
| Wake on LAN/WAN |
|
| Power Supply Unit / Adapter |
90W |
| AC Input Power Voltage |
100V to 240V AC |
| Power Frequency |
50/60Hz, Single Phase |
| Power Consumption* |
29.01 W (Access)
10.59 W (HDD Hibernation) |
| British Thermal Unit |
98.98 BTU/hr (Access)
36.12 BTU/hr (HDD Hibernation) |
Temperature???????????
| Operating Temperature |
5?C to 40?C (40?F to 104?F) |
| Storage Temperature |
-20?C to 60?C (-5?F to 140?F) |
| Relative Humidity |
5% to 95% RH |
| Certification |
- EAC
- CCC
- RCM
- KC
- FCC
- CE
- BSMI
|
| Warranty |
2 Years |
| Notes |
- The warranty period starts from the purchase date as stated on your purchase receipt.?(Learn more)
- Power consumption is measured when fully loaded with Western Digital 1TB WD10JFCX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75?C; Humidity: 58.2-61.8%
|
