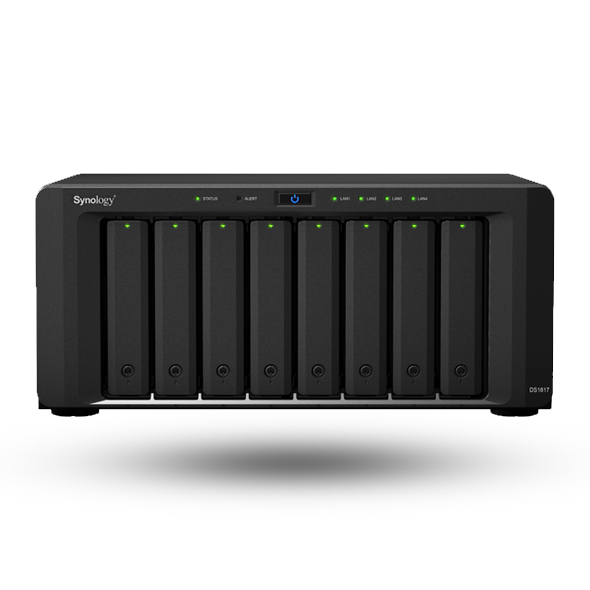

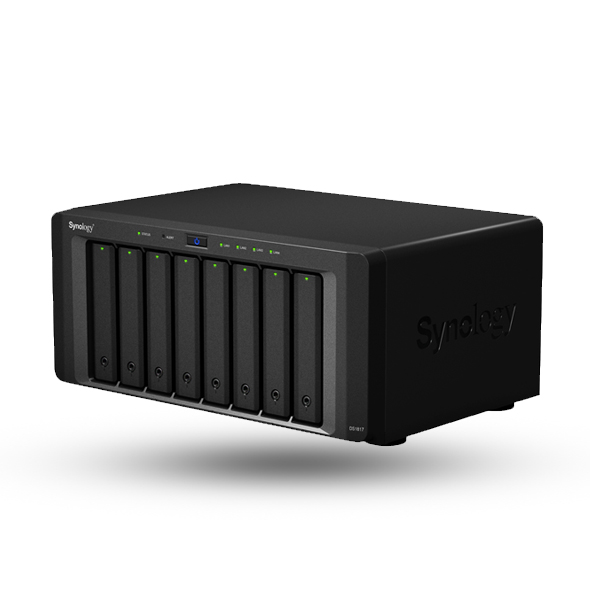

NAS BOX SYNOLOGY DS1817
DiskStation?DS1817
High capacity, fully-featured powerhouse
DS1817 is a powerful,?scalable?8-bay NAS delivering outstanding data transfer rates.?With built-in dual 10GbE LAN?ports in addition to dual Gigabit ports, DS1817 supports Link Aggregation and failover?functions?for maximum performance and service continuity.
Specification
CPU
| CPU Model | Annapurna Labs Alpine AL-314 |
| CPU Architecture | 32-bit |
| CPU Frequency | Quad Core 1.7 GHz |
| Hardware Encryption Engine |  |
Memory????
| System Memory | 4 GB DDR3L |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Memory Expandable up to | 8 GB (4 GB x 2) |
| Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier?s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
Storage?
| Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 18 |
| Compatible Drive Type*?(See all supported drives) |
|
| Maximum Internal Raw Capacity | 112 TB (14 TB drive x 8) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 252 TB (112 TB + 14 TB drive x 10) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| Notes |
|
External Ports?
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
| eSATA Port | 2 |
File System???????
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
Appearance??????
| Size (Height x Width x Depth) | 157 mm x 340 mm x 233 mm |
| Weight | 5.31 kg |
Others??????????
| System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Power Recovery | |
| Noise Level* | 24.2 dB(A) |
| Scheduled Power On/Off | |
| Wake on LAN/WAN | |
| Power Supply Unit / Adapter | 250W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60Hz, Single Phase |
| Power Consumption* | 59.1 W (Access) 26.4 W (HDD Hibernation) |
| British Thermal Unit | 201.66 BTU/hr (Access) 90.08 BTU/hr (HDD Hibernation) |
Temperature???????????
| Operating Temperature | 5?C to 40?C (40?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-5?F to 140?F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Notes |
|
| ?Warranty | 3 Year Warranty |
