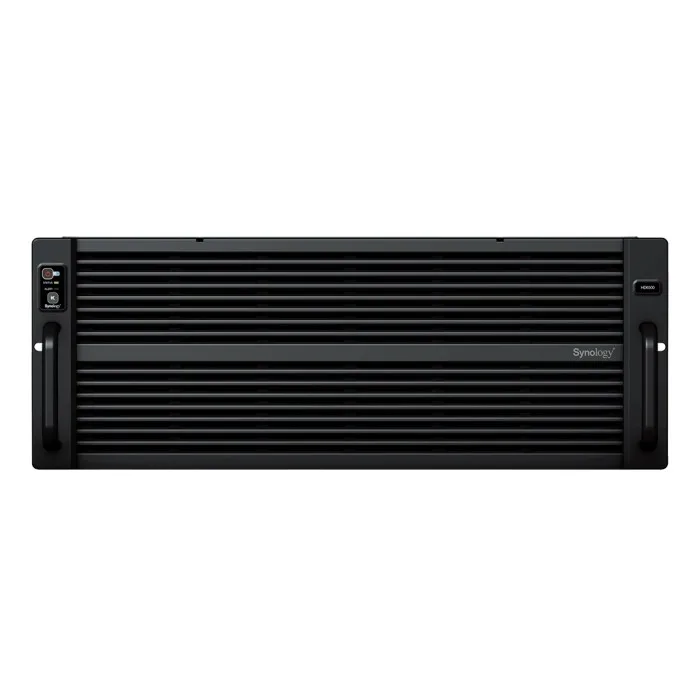

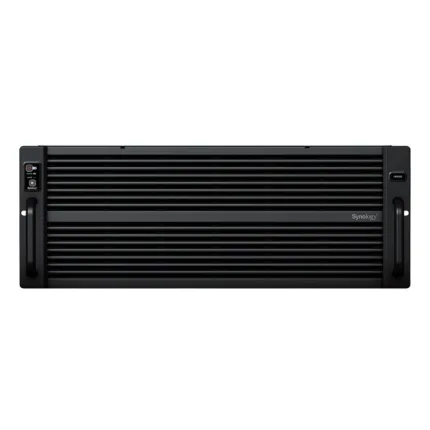

Synology Synology HD6500
| Synology NAS Specifications (60-Bay, 4U, Intel Xeon Silver 4210R) | |
|---|---|
| CPU | |
| Model | Intel Xeon Silver 4210R |
| Quantity | 2 |
| Cores | 10 per CPU (20 total) |
| Architecture | 64-bit |
| Frequency | 2.4 GHz (base) / 3.2 GHz (turbo) |
| Memory | |
| System Memory | 64 GB DDR4 ECC RDIMM (32 GB x 2) |
| Memory Slots | 16 |
| Maximum Capacity | 512 GB (32 GB x 16) |
| Storage | |
| Drive Bays | 60 |
| Max Drive Bays w/ Expansion | 300 (RX6025sas x4) |
| SAS Multipathing | Yes |
| Drive Type | 3.5″ SAS HDD, 2.5″ SATA SSD (with R5 tray) |
| Hot Swappable | Yes |
| System Drives | 2x Synology SATA SSD included |
| External Ports | |
| 1GbE LAN Port | 2 |
| 10GbE LAN Port | 2 |
| Out-of-Band Mgmt Port | 1 |
| Max LAN Ports | 15 (with expansion) |
| USB 3.2 Gen 1 | 2 |
| Expansion Port | 2 (Mini-SAS HD) |
| PCIe Expansion | |
| Slots | 2 x Gen3 x16 (x16 link) 2 x Gen3 x8 (x8 link) |
| Appearance | |
| Form Factor | 4U |
| Dimensions (H x W x D) | 176 x 482 x 1020 mm |
| Weight | 37.9 kg |
| Rack Support | 4-post 19″ rack (RKS-03, included) |
| Other Features | |
| System Fan | 80 x 80 mm x 4 pcs |
| Fan Modes | Full-Speed, Cool, Quiet |
| Easy Fan Replacement | Yes |
| Power Recovery | Yes |
| Noise Level | 60.8 dB(A) |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Power | |
| Power Supply | 1600W (Redundant) |
| Input Voltage | 200V – 240V AC |
| Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 1025.2W (Access), 418W (HDD Hibernation) |
| BTU | 3495.93 (Access), 1425.38 (HDD Hibernation) |
| Environmental | |
| Operating Temp | 0°C – 35°C |
| Storage Temp | -20°C – 60°C |
| Operating Humidity | 8% – 80% RH |
| Storage Humidity | 5% – 95% RH |
| Certifications | |
| FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, KC, BIS, UL | |
| Warranty | |
| Warranty | 5 Years |
| Packaging Content | |
| Main Unit | 1 |
| Synology SATA SSD | 2 |
| Rail Kit (RKS-03) | 1 |
| Accessory Pack | 1 |
| AC Power Cord | 2 |
| Quick Installation Guide | 1 |
| Optional Accessories | |
| Memory | DDR4 ECC RDIMM: D4ER01-32G |
| Expansion Units | RX6025sas |
| Drives | HAS5300 (3.5″ SAS HDD), SAT5200 (2.5″ SATA SSD) |
| Network Cards | 25GbE: E25G30-F2 10GbE: E10G30-F2 / E10G30-T2 |
