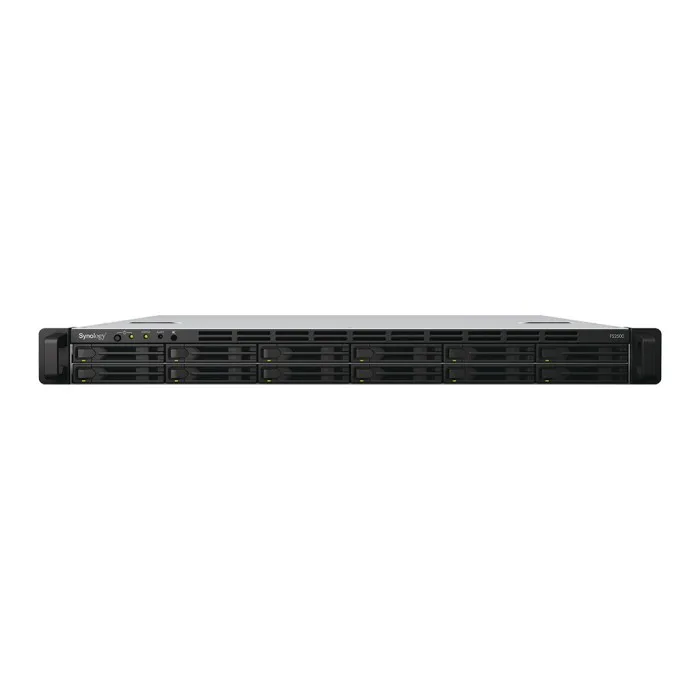

Synology Synology FS2500
| Synology NAS Specifications (12-Bay, 1U, AMD Ryzen V1780B) | |
|---|---|
| CPU | |
| Model | AMD Ryzen V1780B |
| Quantity | 1 |
| Cores | 4 |
| Architecture | 64-bit |
| Frequency | 3.35 GHz (base) / 3.6 GHz (turbo) |
| Hardware Encryption Engine | Not specified |
| Memory | |
| System Memory | 8 GB DDR4 ECC UDIMM (8 GB x 1) |
| Memory Slots | 2 |
| Max Memory Capacity | 32 GB (16 GB x 2) |
| Storage | |
| Drive Bays | 12 |
| Drive Type | 2.5″ SATA SSD |
| Hot Swappable | Yes |
| External Ports | |
| 1GbE LAN Port | 2 (MTU up to 1500) |
| 10GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 2 |
| PCIe Expansion | |
| Slot | 1 x Gen3 x8 (x4 link) |
| Appearance | |
| Form Factor | 1U |
| Dimensions (H x W x D) | 44 x 481.9 x 555.9 mm |
| Weight | 8.3 kg |
| Rack Support | 4-post 19″ rack (Synology RKS-01, sold separately) |
| Other Features | |
| System Fans | 40 x 40 mm x 4 pcs |
| Fan Modes | Full-Speed, Cool, Quiet |
| Easy Fan Replacement | Yes |
| Power Recovery | Yes |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Noise Level | 57.6 dB(A) |
| Power | |
| Power Supply | 350W |
| Redundant PSU | No |
| Power Voltage | 100V – 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 74.83W (Access) |
| BTU | 255.17 BTU/hr (Access) |
| Environment | |
| Operating Temp | 0°C – 35°C (32°F – 95°F) |
| Storage Temp | -20°C – 60°C (-5°F – 140°F) |
| Operating Humidity | 8% – 80% RH |
| Storage Humidity | 5% – 95% RH |
| Certifications | |
| FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, KC, UL | |
| Warranty | |
| Standard | 5 Years |
| Packaging Content | |
| Main Unit | 1 |
| Accessory Pack | 1 |
| AC Power Cord | 2 |
| Quick Installation Guide | 1 |
| Optional Accessories | |
| RAM | DDR4 ECC UDIMM: D4EU01-8G / D4EU01-16G |
| Storage | Enterprise 2.5″ SATA SSD: SAT5200 Series |
| NICs | 25GbE: E25G30-F2 10GbE: E10G30-F2, E10G30-T2, E10G18-T1 |
| Rail Kit | RKS-01 (Sliding, sold separately) |
