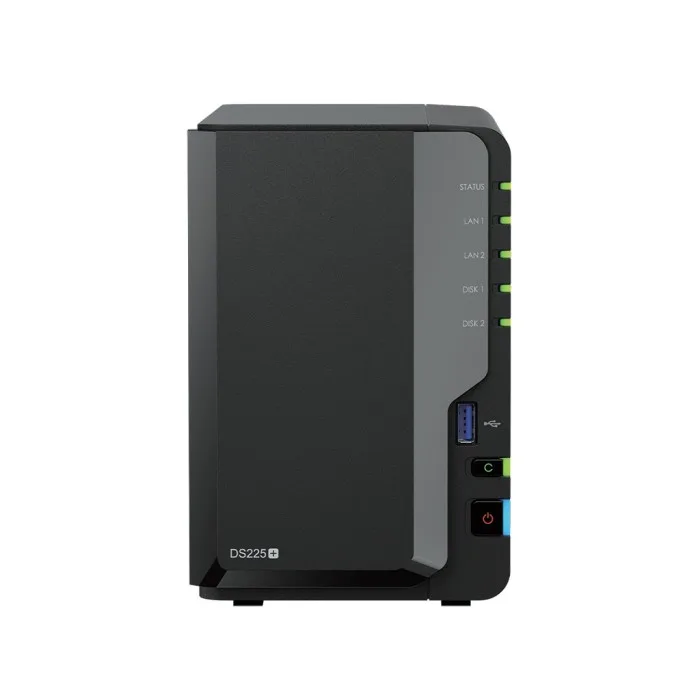

Synology Synology DS225+
| Synology 2-Bay NAS Specifications | |
|---|---|
| CPU | |
| CPU Model | Intel Celeron J4125 |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.0 GHz (base) / 2.7 GHz (turbo) |
| Hardware Encryption Engine | Yes |
| Memory | |
| System Memory | 2 GB DDR4 non-ECC |
| Total Memory Slots | 1 |
| Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
| Memory Notes | Synology reserves the right to replace memory modules with the same or higher frequency based on product lifecycle status. Use Synology memory modules for full warranty and support. |
| Storage | |
| Drive Bays | 2 |
| Supported Drive Types | 3.5″ SATA HDD, 2.5″ SATA SSD |
| Hot Swappable Drives | Yes* |
| Storage Notes | Compatible drives required. Check compatibility list before purchasing. |
| External Ports | |
| RJ-45 1GbE LAN Port | 1 |
| RJ-45 2.5GbE LAN Port | 1 |
| USB 3.2 Gen 1 Ports | 2 |
| USB Copy | Supported |
| Port Notes | 1GbE LAN ports MTU size: 1500 bytes |
| Appearance | |
| Dimensions (H × W × D) | 165 × 108 × 232.2 mm |
| Weight | 1.3 kg |
| Other Features | |
| System Fan | 92 × 92 mm × 1 |
| Fan Modes | Full-Speed, Cool, Quiet |
| Adjustable LED Brightness | Yes |
| Power Recovery | Yes |
| Noise Level | 19.6 dB(A) |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Power | |
| Power Adapter | 60W |
| Input Voltage | 100–240V AC |
| Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 16.98W (Access), 6.08W (HDD Hibernation) |
| BTU/hr | 57.90 (Access), 20.73 (Hibernation) |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certifications | |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS |
| Packaging Contents | |
| Main Unit | x1 |
| Accessory Pack | x1 |
| AC Power Adapter | x1 |
| AC Power Cord | x1 |
| RJ-45 LAN Cable | x2 |
| Optional Accessories | |
| Memory | DDR4 non-ECC SODIMM (D4NS01-4G) |
| Enterprise HDD | HAT5300 Series |
| Plus HDD | HAT3300 Series |
| Enterprise SSD | SAT5200 Series |
