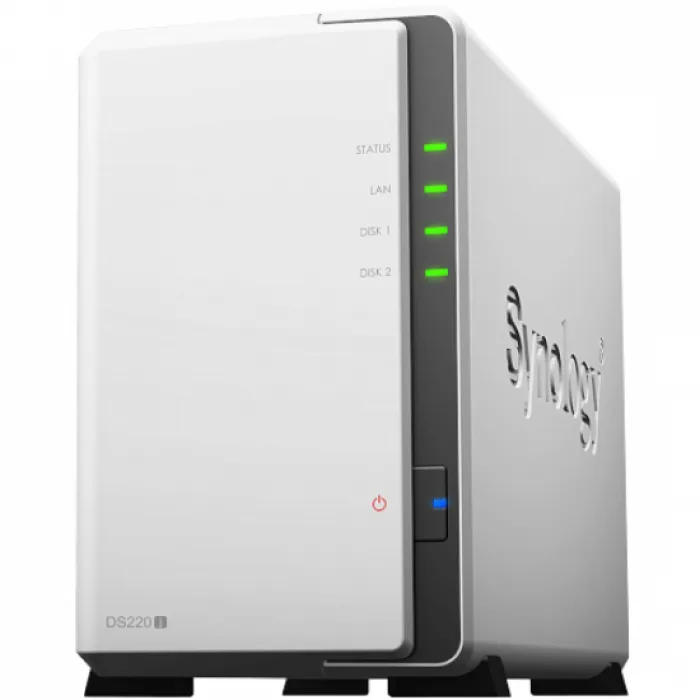

Synology Synology DS220j
Easy-to-use private cloud for everyone: 24-hour home file server for storing, sharing and backing up personal data
Easy to use: award-winning DiskStation Manager (DSM) operating system delivers intuitive operating procedures and reduces learning time
Simple file sharing: Access and share data from any Windows®, macOS®, and Linux® computer or mobile devices
Streaming Easily: The integrated media server supports multimedia streaming
Anytime, Anywhere: Free access to private cloud files on the go and back up photos from mobile devices using iOS and Android ™ apps
Data Protection: Protect digital active with desktop backup applications across all platforms
Key properties
64-bit quad-core 1.4 GHz processor
More than 112 MB/s read/write
RAID 1 protection prevents sudden drive failure
PACKAGE CONTENTS
DS220j main unit
Quick Installation Guide
Accessory package
Power adapter
Network cable RJ-45
Optional accessories
VisualStation VS360HD, VS960HD
Tracking Device License Package
2.5 ”hard drive bracket, type C
SPECIFICATIONS
CPU
Realtek RTD1296 1.4 GHz, quad-core
Memory
512 MB DDR4
Compatible disc type
2 x 3.5 “or 2.5” SATA HDD (with optional 2.5 “disc holder) – Disc not included
Maximum capacity
32 TB (2x 16TB HDD) – Capacity may vary by RAID type
External port
2 x USB 3.0 port
Size (HxWxD)
165 x 100 x 225.5 mm
Mass
0.88 kg
HIND
1 x Gigabit RJ-45
Wake up via LAN/WAN
Yes
Scheduled on/off
Yes
System fan
1 (92 x 92 x 25mm)
Input supply voltage
100 V to 240 V AC (50/60 Hz, single-phase)
Operating temperature
0 ° C to 40 ° C (32 ° F to 104 ° F)
Storage temperature
-20 ° C to 60 ° C (-5 ° F to 140 ° F)
Relative humidity
5% to 95% RH
Maximum operating altitude
5,000 m (16,400 feet)
GTIN Number
846504003440
