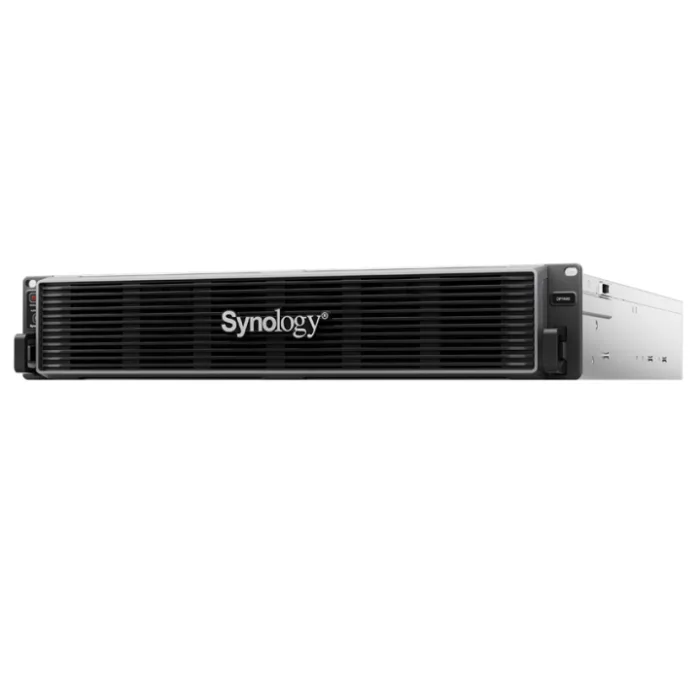

Synology Synology DP7400
| DP7400 Backup Appliance Specifications | |
|---|---|
| Suggested Backup Source | 83.5 TB |
| Suggested Built-in Restored VMs | 9 |
| Cluster Role | Can function as a cluster controller or a managed server supporting up to 2,500 servers or 150,000 workloads³ |
| Hardware Specifications | |
| Form Factor | 2U (Rack Unit) |
| CPU | AMD EPYC 7272 (12 cores) |
| Memory | 64 GB (Max. 512 GB) |
| Storage Configuration | |
| HDD | 10 x 20 TB SATA HDD (RAID 6 + 1 Spare) |
| SSD | 2 x 3.84 TB SATA SSD (RAID 1) |
| Network Interface | |
| Management Port | 1 x 1GbE RJ-45 |
| Data Transfer Ports | 2 x 10GbE RJ-45 (Optional) 2 x 10GbE RJ-45 / 25GbE SFP28 |
| Dimensions & Weight | |
| Without Handles | 88 x 430.5 x 692 mm |
| With Handles | 88 x 482 x 724 mm |
| Weight | 23.4 kg |
| Power & Thermal | |
| Input Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, single phase |
| Power Consumption | 163.17 W (Access) |
| BTU | 556.91 BTU/hr (Access) |
| Operating Environment | |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Storage Environment | Temperature: -20°C to 60°C (-5°F to 140°F) Humidity: 5% to 95% RH |
| Certifications & Compliance | |
| Certifications | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS, EAC |
| Environmental | RoHS Compliant |
| Package Contents | |
| Main Unit | 1 x DP7400 |
| Storage Devices | 10 x 3.5″ SATA HDD, 2 x 2.5″ SATA SSD |
| Power Cords | 2 x C13 to C14 |
| Accessories | 1 x Front Cover, 1 x Accessory Pack |
| Documentation | 1 x Quick Installation Guide |
