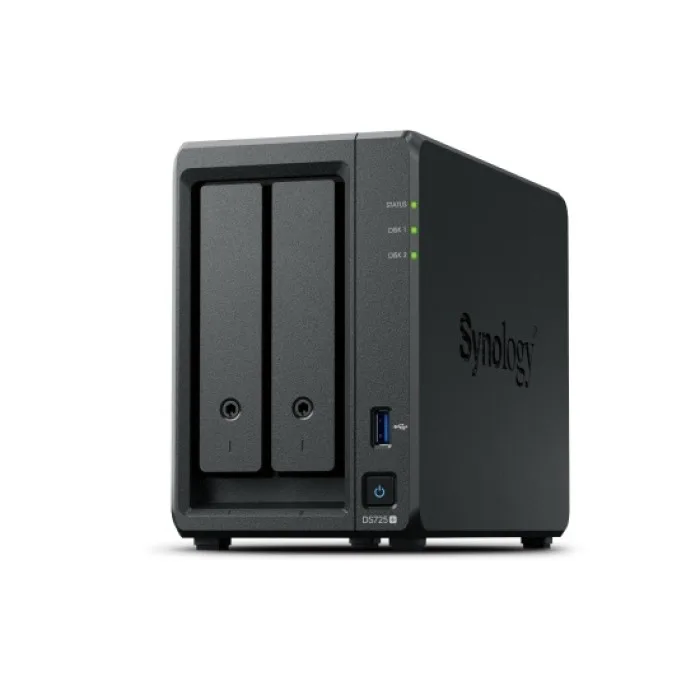

Synology Synology DiskStation DS725+
| Hardware Specifications – Synology DiskStation DS725+ 2-Bay NAS Storage | |
|---|---|
| CPU | |
| CPU Model | AMD Ryzen R1600 |
| CPU Quantity | 1 |
| CPU Core | 2 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.6 GHz (base) / 3.1 GHz (turbo) |
| Hardware Encryption Engine | — |
| Memory | |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |
| Storage | |
| Drive Bays | 2 |
| Max Drive Bays with Expansion | 7 (DX525 x 1) |
| M.2 Drive Slots | 2 (NVMe) |
| Supported Drive Types | 3.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD |
| Hot Swappable Drive | Yes (except M.2 SSD slots) |
| External Ports | |
| RJ-45 1GbE LAN Port | 1 |
| RJ-45 2.5GbE LAN Port | 1 |
| USB 3.2 Gen 1 Port | 1 |
| Expansion Port | 1 (USB Type-C) |
| Appearance | |
| Dimensions (H x W x D) | 166 mm x 106 mm x 223 mm |
| Weight | 1.51 kg |
| Others | |
| System Fan | 92 mm x 92 mm x 1 |
| Fan Speed Modes | Full-Speed Mode Cool Mode Quiet Mode |
| LED Indicators | Adjustable Brightness |
| Power Recovery | Yes |
| Noise Level | 17.9 dB(A) |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Power Supply | 65 watts |
| Input Voltage | 100V–240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 20.41W (Access) 7.87W (HDD Hibernation) |
| BTU | 69.61 BTU/hr (Access) 26.84 BTU/hr (HDD Hibernation) |
| Temperature & Environment | |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -20°C to 60°C |
| Humidity | 5% to 95% RH |
| RoHS Compliant | Yes |
| Certification | |
| FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS | |
| Packaging Content | |
| Main Unit x 1 Accessory Pack x 1 AC Power Adapter x 1 AC Power Cord x 1 RJ-45 LAN Cable x 2 |
|
| Optional Accessories | |
| DDR4 ECC SODIMM: D4ES04-4G, D4ES03-8G, D4ES03-16G Expansion Unit: DX525 3.5″ SATA HDD: HAT5300, HAT3300 Series 2.5″ SATA SSD: SAT5200 Series M.2 NVMe SSD: SNV3400 & SNV5400 Series |
|
Download Synology DiskStation DS725+ Datasheet
