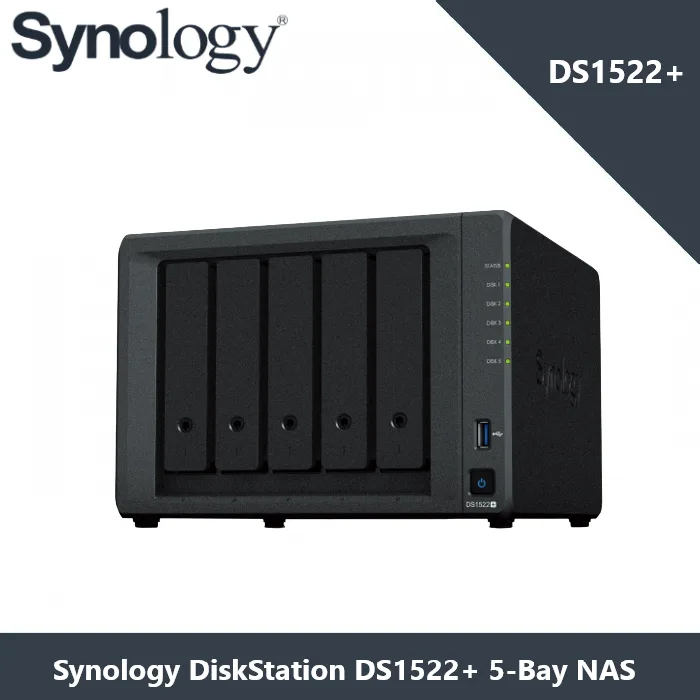

Synology Synology DS1522+
Hardware
CPU AMD Ryzen™ R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz
Hardware encryption engine AES-NI
Memory 8 GB DDR4 ECC SODIMM (expandable up to 32 GB)
Compatible drive types
• 5 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included)
• 2 x M.2 2280 NVMe SSD (drives not included)
• Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6
Hot swappable drives Yes
External ports • 2 x USB 3.2 Gen 1 ports
• 2 x Expansion ports (eSATA)
Form factor Desktop
Size (HxWxD) 166 x 230 x 223 mm
Weight 2.7 kg
LAN ports 4 x 1GbE RJ-45
Wake on LAN/WAN Yes
Network expansion Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2
Scheduled power on/off Yes
System fans 2 x (92 x 92 x 25 mm)
AC input power voltage 100 V to 240 V AC
Power frequency 50/60 Hz, single phase
Operating environment • Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 5% to 95% RH
Storage environment • Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
