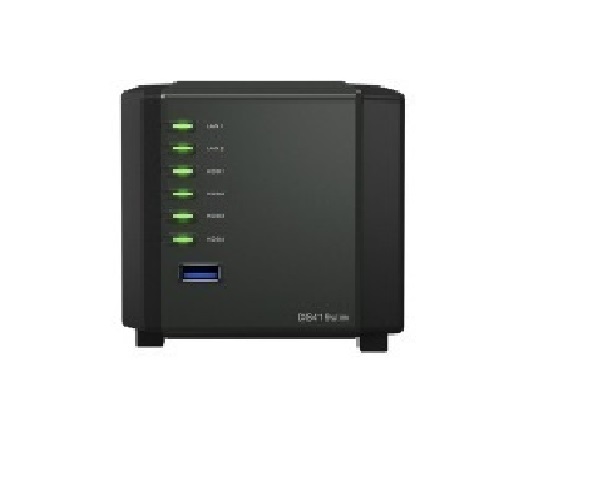

Synology DiskStation 4-Bay NAS, Dual-Core Processor, dual USB 3.0 Ports (DS419slim)
The?Synology (DS419slim)?is a personal cloud that provides comprehensive smart home solution. The versatile packages that come with Synology DiskStation Manager (DSM) can not only simplify file management but also stream multimedia content smoothly. DS419slim delivers file sharing capabilities across multiple platforms while keeping files secure. DS419slim is backed by Synology?s 2-year limited warranty.
Synology (DS419slim)?Key Features
- Mini in Size, Rich in Features
- Cross-Platform File Sharing and Data Synchronisation
- Easy Backup Solutions
- Your Personal Multimedia Library
- Available Anytime and Anywhere
- Easy Setup and Management
- Runs on Synology DiskStation Manager (DSM)
- A 4-bay small footprint NAS for building smart home
- 2.5? drive support
- Dual-core CPU with hardware encryption engine
- Over 220 MB/s reading, 94 MB/s writing through dual Gigabit Link Aggregation with failover support
- Effortless management of music, video and photos as personal multimedia library
Mini in Size, Rich in Features
Synology DS419slim is a 4-bay mini cube-shaped network-attached storage, perfect to serve as a personal cloud for home users. With the design of 2.5? drive support, DS419slim not only is ultralight but also lightens your workload. Powered by a dual-core processor, DS419slim delivers excellent sequential throughput at over 220 MB/s reading and 94 MB/s writing in dual Gigabit Link Aggregation environment. DS419slim comes with dual USB 3.0 ports, each on the front and rear panel, providing fast and convenient data transfer and backup to external storage devices. DS419slim consumes only 20 watts during data accessing and 7 watts during HDD hibernation, which is power-efficient to serve as a 24/7 personal storage server. With the support of Synology DiskStation Manager (DSM), a web-based and intuitive multitasking operating system, DS419slim is easy-to-use, and ready for you to enjoy home entertainment.
Cross-Platform File Sharing and Data Synchronization
Synology DS419slim supports comprehensive network protocols, ensuring a seamless file sharing experience across Windows, Mac?, and Linux? platforms. Windows AD and LDAP integration allows DS419slim to fit quickly and effortlessly into any existing network environment, without needing to create identical user accounts. Synology Drive allows you to sync files across Windows, macOS and Linux computer platforms, and access files on the go with mobile devices to keep information up-to-date and share files effortlessly. Cloud Sync keeps your Dropbox, Google? Drive, Microsoft OneDrive, Baidu, and Box storage in sync with your personal DiskStation at home.
Easy Backup Solutions
Synology Hyper Backup provides multi-version backup with block-level incremental backup and cross-version deduplication. It optimises storage utilisation and allows data to be backed up to multiple destinations such as local shared folders, external hard drives, network shared folders, rsync servers, and public cloud services.
Your Personal Multimedia Library
DS419slim helps you easily manage your multimedia content and share it across Windows, macOS, and Linux platforms. With Video Station, you can organise your personal digital video library using comprehensive media information. Audio Station comes with Internet radio, lossless audio format support, and provides music playback via DLNA and AirPlay? devices. Photo Station?s intuitive design allows professional photographers to effortlessly organise photos into customised categories, smart albums, and link them to social media sites with just a few clicks. As a brand-new photo solution for personal and home use, Synology Moments promises users a modern browsing experience by offering mobile photo backup, photo sharing, image recognition and similar photo detection.
Available Anytime and Anywhere
Synology provides mobile applications for you to enjoy your multimedia library anytime and anywhere. Available on iOS and Android? platforms, DS photo, DS audio, DS video, and DS file allow access to your Synology NAS respectively through Photo Station, Audio Station, Video Station, and File Station. QuickConnect allows connection to your Synology NAS via a secure and customisable address, so that you can instantly access media and work files on any Windows, Mac, Linux computers, and mobile devices.
Easy Setup and Management
Web Assistant is a web-based utility designed for users to easily set up their Synology NAS. System installation is done with your existing web browser in just a few simple steps. It is combined with a quick start widget, allowing users to simultaneously explore the DSM operating system and complete basic system settings. For users unfamiliar with router configurations, Synology EZ-Internet Wizard simplifies the process of setting up network access to DS419slim by guiding users through network settings such as firewall, port-forwarding, PPPoE setup, and DDNS registration.
Running on Synology DiskStation Manager (DSM)
DSM is a web-based operating system that provides private cloud services. It is designed to simplify your daily task management. The multitasking web interface allows you to run multiple applications simultaneously on one browser tab and instantly switch between them. The intuitive DSM allows you to effortlessly configure storage capacity, gives you complete control over your personal cloud, and lets you access your Synology NAS from anywhere. The built-in Package Center allows you to download and install the packages designed to satisfy different user needs, such as sharing files on the cloud, sharing photos on an online album, or setting up a VPN environment. Tasks can be done with just a few steps.
Synology (DS419slim)?Technical Specification
Hardware
- CPU: Marvell Armada 385 88F6820 dual-core 1.33GHz
- Hardware encryption engine: Yes
- Memory: 512MB DDR3L
- Compatible drive type: 4 x 2.5? SATA HDD/SSD (drives not included)
- Hot swappable drive: Yes
- External port: 2 x USB 3.0 port
- Size (HxWxD): 120 x 105 x 142 mm
- Weight: 0.66 kg
- LAN: 2 x Gigabit (RJ-45)
- Wake on LAN/WAN: Yes
- Scheduled power on/off: Yes
- System fan: 1 (60 x 60 x 10 mm)
- AC input power voltage: 100V to 240V AC
- Power frequency: 50/60Hz, single phase
- Operating temperature: 5?C to 40?C (40?F to 104?F)
- Storage temperature: -20?C to 60?C (-5?F to 140?F)
- Relative humidity: 5% to 95% RH
- Maximum operating: altitude 5,000 m (16,400 ft)
General DSM Specification
- Networking protocol: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN ?, L2TP)
- File system:
? Internal: ext4
? External: ext4, ext3, FAT, NTFS, HFS+, exFAT3 - Supported RAID type: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Storage management:
? Maximum single volume size: 16TB
? Maximum internal volume: 256 - File sharing capability:
? Maximum local user accounts: 1,024
? Maximum local groups: 256
? Maximum shared folders: 256
? Maximum concurrent SMB/NFS/AFP/FTP connections: 100 - Privilege: Windows Access Control List (ACL), application privilege
- Directory service: Windows? AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration
- Security: Firewall, encrypted shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let?s Encrypt support, HTTPS (Customisable cipher suite)
- Supported client: Windows 7 and 10, Mac OS X? 10.11 onwards
- Supported browser: Chrome?, Firefox?, Edge?, Internet Explorer? 10 onwards, Safari? 10 onwards; Safari (iOS 10 onwards), Chrome (Android? 6.0 onwards) on tablets
- Interface Language: English, Deutsch, Fran?ais, Italiano, Espa?ol, Dansk, Norsk, Svensk, Nederlands, ???????, Polski, Magyar, Portugu?s do Brasil, Portugu?s Europeu, T?rk?e, ?esk? and more
Packages and Applications
- Drive: Provide universal portal to synchronise your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in universal portal allows you to access data anytime and anywhere.
? Maximum Number of Hosted Files: 100,000
? Maximum Number of Concurrent Connections for PC Clients: 200 - File Station: Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs
- FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs
- Cloud Sync:?One or two-way synchronisation with public cloud storage providers including Alibaba Cloud OSS, Amazon Drive, Amazon S3-compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk
- Universal Search: Offer global search into applications and files
- Hyper Backup: Support local backup, network backup, and backup data to public clouds
- Backup tools: DSM configuration backup, macOS Time Machine support, Cloud Station Backup. Shared folder sync ? maximum tasks: 2
- Collaboration tools: Collaborate with instant message service Chat, online editor Office, and scheduling assistant Calendar
? Chat maximum user: 10
? Office maximum user: 100
? Calendar: support CalDAV and access via mobile devices - Note Station: Rich-text note organisation and versioning, encryption, sharing, media embedding and attachments
- Moments:?Support smart AI album with facial recognition, similar photo detection, and photo editing and sharing features. Mobile applications are available on iOS and Android devices.
- Other packages: Video Station, Photo Station, Audio Station, iTunes? Server
- Surveillance Station: Maximum IP cameras: 8 (total of 240 FPS at 720p, H.264) (includes two free camera licenses; additional cameras require the purchasing of additional licenses)
- VPN Server: Maximum connection: 10, supported VPN protocol: PPTP, OpenVPN?, L2TP/IPSec
- Mail Server: Supported Mail Server protocol: POP3, SMTP, IMAP, support LDAP/AD account
- Mail Station: Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customisable SMTP server
- Web Station:?Virtual host (up to 30 websites), PHP/MariaDB?, 3rd-party applications support
- Other packages: DNS Server, RADIUS Server, Log Center
- Storage Analyser: Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified files
- Antivirus Essential: Full system scan, scheduled scan, white list customisation, virus definition auto update
- iOS/Android? applications: Synology Drive, DS audio, DS photo, DS video, DS cam, DS cloud, DS file, DS finder, DS note, Moments
- Other packages: Additional 3rd-party packages available on Package Center
Environment and Packaging
- Environment safety: RoHS compliant
- Package content:
? DS419slim main unit
? Quick Installation Guide
? AC power adapter
? RJ-45 LAN cable x 2 - Optional accessories:
? VisualStation VS360HD, VS960HD
? Surveillance Device License Pack - Warranty: 2 years
