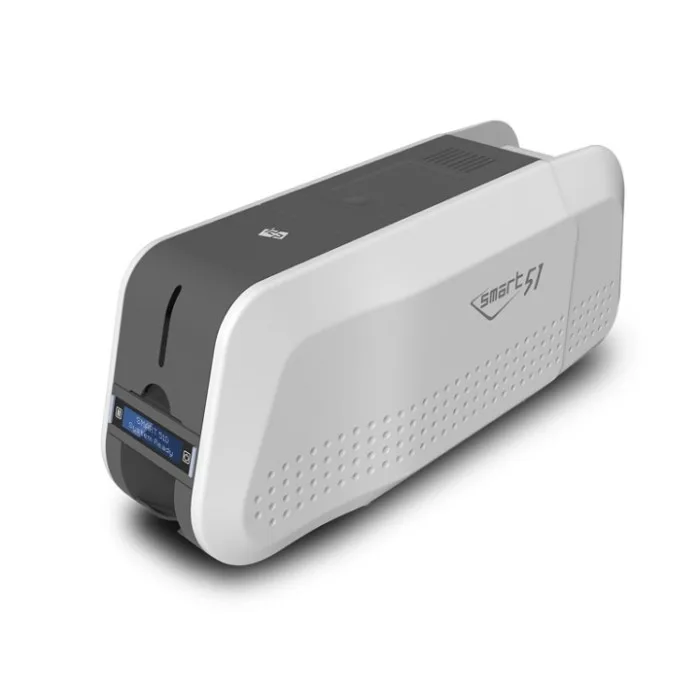

SMART Smart Smart 51D
| Dual-Sided Card Printer Specifications | |
|---|---|
| Printing | |
| Print Mode | Dual Sided |
| Print Type | Direct Dye-Sublimation |
| Print Area | Edge to Edge |
| Resolution | 300 dpi (Colour & Mono); 600 dpi & 1200 dpi (Mono only) |
| Card | |
| Card Feeding | Automatic |
| Card Size | ISO CR80 or ISO CR79 (Factory-installed option) |
| Card Thickness | 0.38mm (15mil) ~ 1.0mm (40mil) |
| Card Type | PVC, PET, Composite PVC |
| Print Speed | |
| Monochrome | 5 sec/card (720 cards/hour) |
| YMCKO | Max. 17 sec/card (212 cards/hour) |
| YMCKOK | Max. 22 sec/card (164 cards/hour) |
| Capacity | |
| Input Card Hopper | 100 Cards / 200 Cards with cover open |
| Output Card Hopper | Front: 40 Cards / Rear: 100 Cards (Optional rear-side stacker) |
| System | |
| Memory | 64MB RAM |
| User Interface | 2 Line LCD / 2 LED Buttons |
| Supported Platforms | Windows 7/8/10, Mac OS, Linux |
| Communication | USB, Ethernet (Optional), WiFi (Optional) |
| Power Supply | Free Voltage (AC100/220V, 50~60Hz) |
| Power Consumption | 48W |
| Operating Temperature | 15-35C |
| Humidity | 35-70% |
| Dimensions | |
| Millimeters | 165 (W) x 498 (L) x 210 (H) |
| Inches | 6.5 (W) x 19.6 (L) x 8.3 (H) |
| Weight | |
| Physical Lock (Optional) | |
| Lock | Input Hopper & Ribbon / Kensington Lock |
| Encoding Options | |
| Magnetic | ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II |
| Contact | ISO 7816 A/B/C, ISO 7816 1/2/3/4 Microprocessor Cards |
| Contactless | ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092 (NFC), Felica |
| Certifications | |
| CB, CE, FCC, KC, CCC | |
