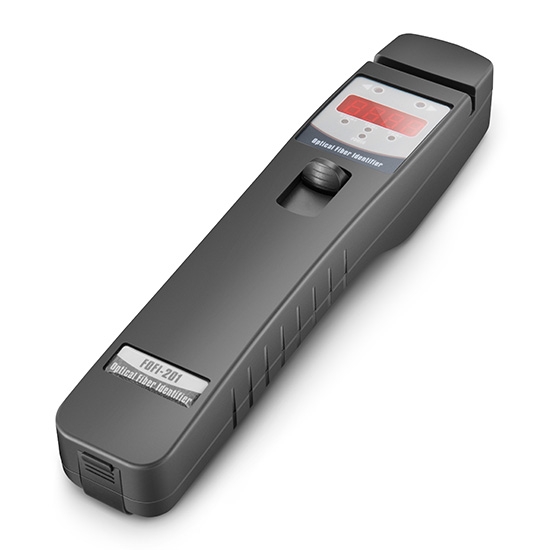

FOFI-201 Single Mode Optical Fiber Identifier without Visual Fault Locator
The FOFI-201 is a kind of high quality optical fiber identifier which can indicate the signal direction in fiber without disrupting traffic, and it is suitable for fiber with diameter of 0.25mm/0.9mm/2.0mm/3.0mm, and no need to replace the clamp block, more convenient than others.
Description
Visual Fault Locator
0mW
Wavelength Range
800 to 1700nm (SM)
Recognizable signal type
CW, 2kHz, 1kHz, 270Hz +/- 10%
Detector Type
InGaAs 2pcs
Fiber Type
0.9, 0.25, 2.0, 3.0 mm fiber
Sensitivity
10dB to -20dBm(1310nm), 10dB to -30dBm(1550nm)
LED Indicator
2kHz/1kHz/270Hz
Storage Temperature
-20 ~ +60 ?C, < 90%RH
Operating Temperature
-10 ~ +50 ?C, < 90%RH
Weight
About 250g
