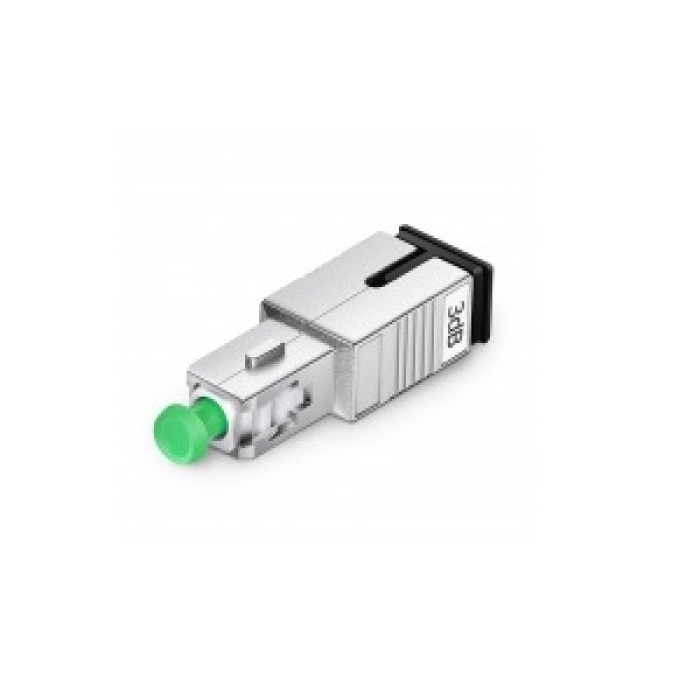

3dB SC/APC Male to Female Singlemode Fiber Attenuator, Fixed Type
As optical passive devices, attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Fiber Connector
SC/APC
Ferrule Type
Zirconia Ceramic
Connector Gender
Fixed Male to Female
Transfer Mode
Singlemode
Attenuation
3dB
Operating Wavelength(nm)
1260~1620(SM)
Attenuation Accuracy
?0.5dB
Return Loss
?45dB
Polarization Dependent Loss
?0.2dB
Max Optical Input Power
200mW
Humidity
95%RH
Operating Temperature Range
-40 to 80?C (-40 to 176?F)
Storage Temperature Range
-40 to 85?C (-40 to 185?F)
