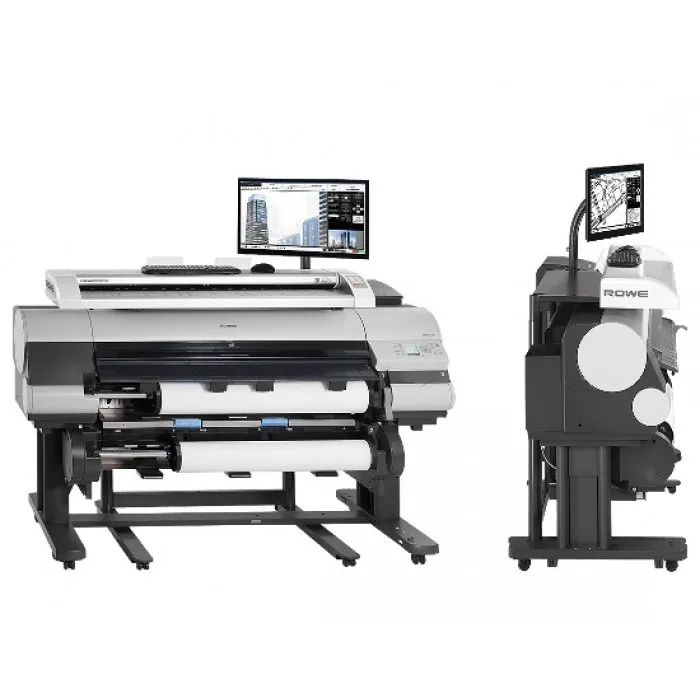

ROWE ROWE Scan 450i – 24
Description
Scan width / Original thickness / Scan length
Maximum scan width
#1: 24″ (622 mm) / maximum original width 27.4″ (696 mm)
#2: 36″ (927 mm) / maximum original width 39.4″ (1001 mm)
#3: 44″ (1130 mm) / maximum original width 47.4″ (1204 mm)
Maximum original thickness
#1: Up to 2 mm (0.08″) with flexible materials
Scan length
#1: Not limitied by the scanner
Scan quality
Optical resolution
#1: 2400 x 1200 dpi
Maximum resolution
#1: 9600 x 9600 dpi
Scan accuracy
#1: 0,1% +/- 1 Pixel
Color depth
#1: 48-bit color
#2: 16-bit greyscale
Color space
#1: Not only the standard sRGBcolor space but also user defined color spaces like Adobe RGB or Device RGB are supported
ROWE SELECTED TRUE LIGHT
#1: Lighting of originals is exceptionally homogenous. Optimal alignment of the lighting angle to the reading unit.
ROWE DOUBLE ROW LENSE
#1: Significantly higher light throughput
ROWE DYNAMIC STITCHING – RDS (patent)
#1: Controls continuously the scanned document data of each sensor and sets them together in real time. Any deviations that may occur are corrected automatically.
ROWE PRO LOGIC
#1: Scan once for optimal results. Automatic process for the filtering of dirt/background and the highlighting of image information, ideal for originals with poor contrast.
Ergonomics
Automatic workflow (4 freely programmableHot Keys on the control panel of the scanner)
#1: All functions of the ROWE ScanManager can be stored. Retrievable with a click. The number of favourites (personalised settings, e.g. defined scan profiles) is not limited in the ROWE ScanManager. You can also protect the favourites with a password.
Simple replacement of scan glass
#1: Removal of the scan glass is carried out without tools – simply, quickly and absolutely ergonomically!
ROWE SAFE DRIVE (patent)
#1: – Up to 500 % longer life-cycle of the scan glass compared to standard scanners without ROWE SAFE DRIVE
#2: – Safe transport of fragile originals
Scanning face-up
#1: Makes an ergonomic handling of the originals possible – you see what you scan.
Active output
#1: Driven transport rollers at the rear guarantee safe output of the documents, no jam in the scanner also during operation without a stand or in connection with a scan table.
Productivity / Interface
#1: Color (24-bit RGB) and 8-bit indexed Color at 400 dpi (Turbo)*
#2: Meters per minute / Inches per second
Black and white (1-bit) and greyscale (8-bit) at 400 dpi (Turbo)*
#1: Meters per minute / Inches per second
DOCUMENT IMPROVEMENT SYSTEM – DIS
#1: All changes can be done after scanning. No rescanning required. Any changes made will be immediately displayed in the viewer.
Automatic width recognition “On the fly“ (patented)
#1: The width of the original is precisely determined during the scanning process. No forward and backward movement for recognition of the document width.
Dynamic width recognition (patented)
#1: Automatic and correct recognition of the document width, also when damaged, e.g. ripped corners
No warm-up time
#1: Immediately operational (also for color)
ROWE EFFICIENT SCANNING – RES (patent)
#1: High performance real time width recognition and data transfer process
SuperSpeed USB 3.0 + RES
#1: Data throughput up to 1000 % higher compared to HighSpeed USB 2.0
HightSpeed USB 2.0 + RES
#1: Data throughput up to 200 % higher compared to HighSpeed USB 2.0
DIN A0, color (24-bit RGB), incl. automatic width recognition, SuperSpeed USB 3.0 with RES technology
#1: Documents per hour,** at 300 x 300 dpi: 113: 215
DIN A0, black/white (1-bit) and greyscale (8-bit), incl. automatic width recognition, SuperSpeed USB 3.0 with RES technology
#1: Documents per hour,** at 300 x 300 dpi-427-427
#2: Documents per hour,** at 600 x 600 dpi-189-189
Power connection
#1: 100 – 240 V 50/60 Hz
Power consumption
#1: Operating / energy saving mode with programmable timer, exceeds the requirements of the Energy Star- < 19 W /< 0.4 W
Weight
#1: Large format scanner 24″-13.0 kg – 13.0 kg
#2: Large format scanner 36″- 16.0 kg – 16.0 kg
#3: Large format scanner 44″- 18.5 kg – 18.5 kg
Dimension
#1: Large format scanner 24″ depth x width x height- 332 x 896 x 126 mm – 332 x 896 x 126 mm
#2: Large format scanner 36″ depth x width x height-332 x 1201 x 126 mm – 332 x 1201 x 126 mm
#3: Large format scanner 44″ depth x width x height- 332 x 1404 x 126 mm – 332 x 1404 x 126 mm
Quality seals / certificates
#1: RoHS, ENERGY STAR, CE, CCC, UL, cUL, CB, FCC Part 15 Class B, EAC, BSMI
