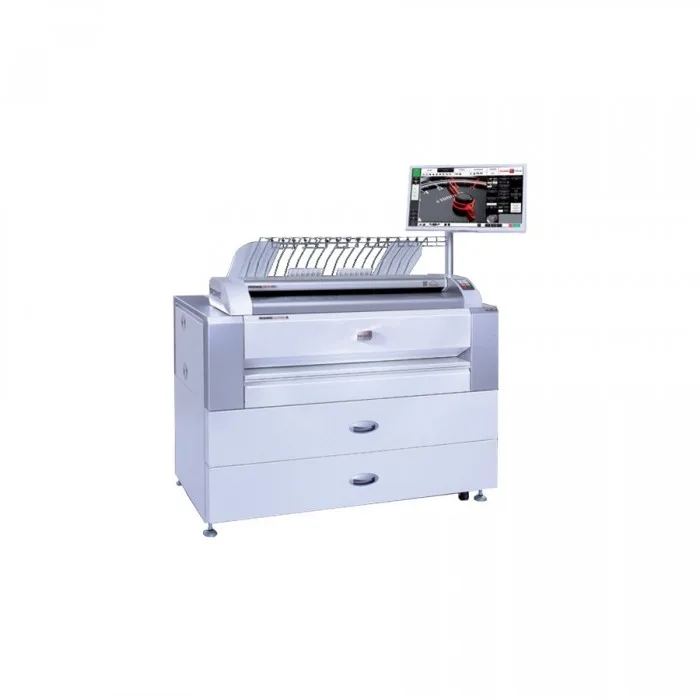

ROWE ROWE eco Print i8
Description
Product description :
First completely modular
black and white large format printer, extendable at any time to multifunctional
All-in-One-System (printing, copying, scanning)
Imaging techlogy:
Electrophotography
(LED), organic photoconductor (OPC), clean, closed toner system, ROWE ecoPress
fusing techlogy
Print speed :
Meters per minute –
4
Color scanner (optional)
ROWE Scan 450i
technical data :
Large format scanner
with a scan width of 36” (927 mm), optical resolution 2400 x 1200 dpi, ROWE
ScanMatrix+, color depth 48 bit color, 16 bit grayscale, SuperSpeed USB 3.0 +
RES, scanning speed up to 17 m/min, scan length t limited by scanner, ROWE
SELECTED TRUE LIGHT, ROWE DYNAMIC STITCHING – RDS (patented), ROWE PRO LOGIC,
ROWE SAFE Drive (patented), automated workflow (4 freely programmable Hot Keys
on the operating panel of the scanner), automatic width recognition “On the
fly” (patented), dynamic width recognition (patented), DOCUMENT IMPROVEMENT
SYSTEM (DIS )
Media handling
Number of automatic
media rolls:
2 automatic rolls and
single sheet feed
3rd automatic roll
Media weight :
60 – 110 g/m²
Roll width:
279 – 914 mm, maximum
175 m per roll
Manual feed:
Width:
210 – 914 mm, length:
210 mm – 200 m
Media type:
Paper: plain paper,
transparent paper, recycled paper, fluorescent paper, colored paper and vellum;
Film: film, polter
ROWE REMAINING LENGTH
DISPLAY:
Automatically displays
the remaining length of each roll
Standard Delivery Tray:
Delivery tray at the
back for up to 100 DIN A4 – DIN A0 printouts
ROWE FRONT DELIVERY
TRAY:
Integrated top delivery
tray for up to 100 DIN A4 – DIN A0 printouts, requires additional space,
can also be used as a scan delivery tray simply by tilting it back (standard
delivery tray t applicable)
Ergomics
ROWE ERGOTEC:
Invative, ergomic drawer
system with easy runners, parallel balance, buffered stops, whisper quiet
operation
ROWE MEDIA INPUT
ASSISTANT (patented):
Safest, most ergomical
and fastest media input system, without roll holders, simple to operate
ROWE FULL HD
USER-INTERFACE:
#1:
Resolution: 1920 x 1080 pixels
#2: 23“ – 24“
multifunctional touchscreen
#3: Support arm for
touchscreen and other flatscreens, screen size 23” – 24” (max. 10 kg) with VESA
MIS D 75/100 holder. Display optimization: vertical (- 90 to + 90 degrees) and
horizontal (- 40 to + 40 degrees). The support arm can also be turned (- 75 to
+ 75 degrees).
SuperSpeed USB 3.0 –
Port directly at the printer:
Printing directly from
USB stick, scanning directly to USB stick
Print quality:
ROWE HIGH-Q-PRINT /
resolution:
Print resolution 1200 x
600 dpi, highly developed image processing, crystal clear lines, clear
grayscale reproduction
ROWE SOLID PRINT
TECHLOGY:
Even large continuous
black areas are printed evenly – decrease in the quality of the print
even with high volumes
ROWE ecoPress:
Fusing quality with flat
printed images that can hardly be felt, optimal toner adhesion even when
documents are folded
Embedded ROWE V-POWER
CONTROLLER
Platform:
ROWE V-POWER CONTROLLER
with integrated 64-bit operating system and virtual image processing system for
32-bit and 64-bit environments, web based with high performance simultaneous
data conversion, concurrent scanning, copying and printing of individual documents
or sets
Interfaces:
Ethernet 10/100/1000
MBit/s with RJ45
Scan and print boxes:
Local and remote boxes
for direct storage of scans or for printing data files (listener function) with
settings that can be configured individually, password protected (can be set)
Security:
E-data shredding, HTTPS
and VPN
Extended protection and
logging functions for administrators
Secure Printing:
PIN code protection,
Follow-Me-Printing Interface
ROWE DATA SAFE:
Integrated system
security with Live and Backup System
Supported client
operating systems:
Certified ROWE Windows
driver for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1,
Windows Server 2003, 2008, 2008 R2 and 2012 (all in 32-bit and 64-bit); ROWE
PostScript 3 drivers for Windows XP, Windows Vista, Windows 7, Windows 8 and
Windows Server 2003, 2008, 2008 R2 and 2012 (all in 32-bit and 64-bit);
platform independent ROWE web tools optimized for Windows Internet Explorer and
Mozilla Firefox
Data format:
HPGL, HPGL2, HPRTL,
TIFF, G1, G2, G3, G4, Packed Bits, CALS 1 and 2, TAPE9, LZW, Multipage TIFF,
Calcomp 906/907, HCBS, PNG, JPEG, CGM
PostScript Level 2 and
3, PDF, PDF-A, Multipage PDF/PDF-A
Network protocols:
TCP/IP, SMB, FTP, LPD,
SNMP, WebDAV
ROWE APP CENTER
ROWE COCKPIT APP:
Printer status with
direct feedback, roll information (width, medium, remaining length), counter,
system set up, switch off and new start in remote process
ROWE PRINT APP:
Order transmission: web
based clients, cloud, USB, preview, ROWE AUTO CROP (recognizes and
automatically corrects unwanted white margins)
Order management:
personalized, intelligent job management with progress, queue management,
preview and processing function
Additional PRINT QUEUES:
for printing, list of printers supported and file printers can be seen in the
ROWE APP CENTER
ROWE COST TRACKER
APP Protocol of all print, scan and
copy orders
ROWE TWAIN APP:
Twain + Edit Functions:
direct scanning in all applications with Twain support, basic kit image
processing, 2 viewers (over and main), ICC color management, ROWE Scan 450i 36”
embedded required
ROWE SCAN APP:
Twain + Edit + Scan
Functions: ROWE TWAIN APP and in addition intuitive operation via touchscreen
or mouse and keyboard, Scan-to-Net, Scan-to-USB, Scan-to-E-Mail, Scan-to-Cloud,
Scan-to-Box, ROWE Scan 450i 36“ embedded required
ROWE COPY APP:
Twain + Edit + Scan +
Copy Functions: ROWE TWAIN APP, ROWE SCAN APP and in addition Scan-to-Copy, Multiprint,
Multitasking, Recopy, Closed-Loop color calibration, a printer driver for both
inkjet printer and ROWE printer, ROWE Scan 450i 36” embedded required
Additional COPY DRIVERS:
for copying, list of printers supported can be seen in the ROWE APP CENTER
ROWE FOLD APP:
Set-up and editing of
folding programs, Folding System ROWEFOLD 721-4 required
ROWE WEB CONNECT APP:
Platform independent web
access, scanning in the cloud, printing from the cloud
ROWE EDIT PROFESSIONAL
APP: Functions: two
point deskew, measurement of areas and distances directly in the scan,
cleaning, insertion of text and geometrical shapes, various layers, transparent
objects, generation of color palettes, extended cutting functions
ROWE POSTSCRIPT/PDF APP:
Direct printing of
PostScript Level 2 and 3, PDF, PDF-A, MULTIPAGE PDF/PDF-A data files on ROWE
ecoPrint
ROWE PRINT SPECIALS APP:
Editing of stamps, texts
in margins, cover pages and pens
ROWE COST CENTER APP:
Comprehensive cost
management with calculation, limitation and filter functions. Prepaid, user and
cost accounts, including forced accounting (on or off function)
ROWE I-DEC APP:
Automatic
detection of title block positions and rotation of data files for correct
online folding in accordance with DIN
Environment
ROWE ecoToner:
Toner tested for harmful
substances
Clean and closed toner
system
Power consumption
(watts) better than required by Energy Star:
Energy saving mode with
programmable timer, incl. controller – 41
Power supply:
220/230 V, 50/60 Hz
Sound power level in db
(in acc. with IS O 7779 operator position):
Energy saving mode,
incl. controller-not measurable
Printing mode- 52
Ozone concentration:
The following
measurement results are clearly below the permitted values:
<0.0005 mg/m³
(<0.00025 ppm) average
Printer recycling:
Manufactured in steel or
high quality recyclable plastics: up to 98 % of the unit can be recycled. The
remaining 2 % is n-toxic waste.
Toner cartridge
recycling:
Cartridge made of
completely recyclable plastic
Weight:
Weight large format
printer in kg – 2 rolls
Weight large format
printer in kg – 3 rolls
Weight large format
printer in kg – 4 rolls
Weight large format
printer in kg – 6 rolls
Weight ROWE FRONT
DELIVERY TRAY in kg-7
Dimensions:
Width/Height/Depth in mm
with ROWE FRONT DELIVERY TRAY, without multifunctional touchscreen
Certifications:
RoHS, ENERGY STAR, CE,
CCC, UL, cUL, CB, FCC Part 15 Class B, EAC
