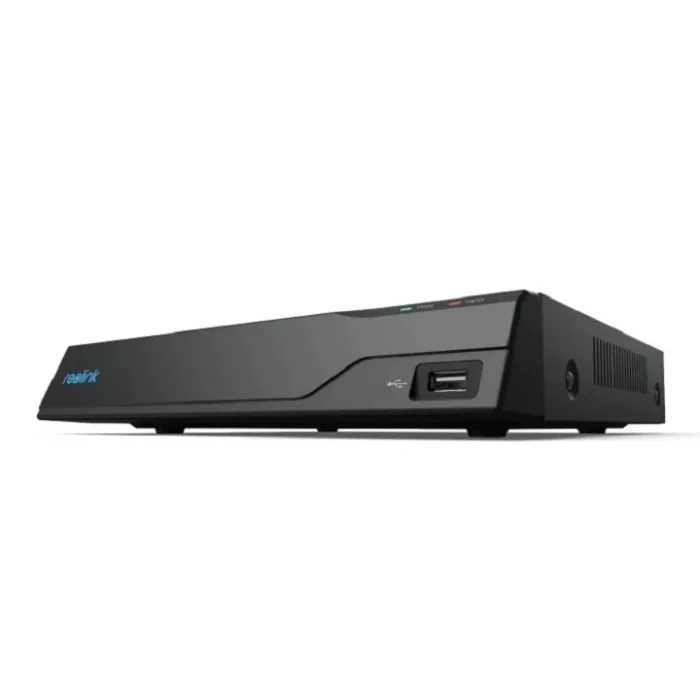

REOLINK Reolink NVS8
| Video/Audio Input | |
|---|---|
| IP Video Input | PoE IP Camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video/Audio Output | |
| HDMI Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| VGA Output Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Audio Output | 1-Channel, RCA |
| Decoding | |
| Video Format | H.264, H.265 |
| Live View / Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| HDD | |
| SATA | 1 x SATA interface |
| External HDD | 1 eSATA Interface for HDD |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| External Interface | |
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1 x RJ-45 10/100 Mbps for LAN/WAN 8 x RJ-45 10/100 Mbps PoE for IP cameras |
| PoE | |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | Windows, Mac OS; iOS, Android |
| Max. User Access | 20 users (1 admin & 19 user accounts); up to 12 video streams (10 substreams, 2 mainstreams) |
| General | |
| Power Supply | DC 48V~53V |
| Power Consumption | <10W (Without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); Humidity: 10%~90% |
| Dimensions | 255 x 49.5 x 232mm |
| Weight | 1.4kg |
