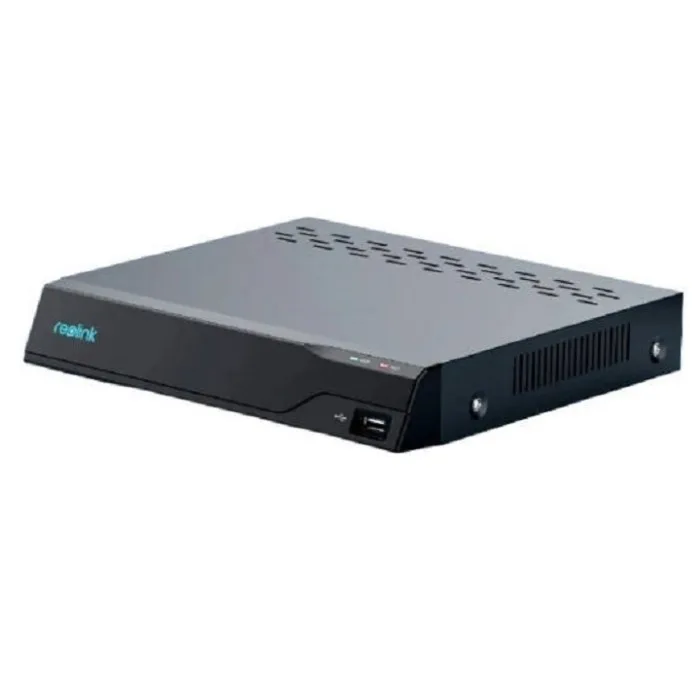

REOLINK Reolink NVS4
| Video/Audio Input | |
|---|---|
| IP Video Input | Up to 4 IP cameras |
| Audio Input | N/A |
| Video/Audio Output | |
| Video Output | VGA, HDMI |
| Display Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Audio Output | 1CH RCA (add-on speaker) |
| Decoding | |
| Video Compression | H.264 / H.265 |
| Live View / Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080P, 720P |
| Synchronous Playback | Up to 4 channels |
| HDD | |
| SATA | 1 x SATA for HDD |
| Capacity | Up to 6TB |
| External Interface | |
| USB Interface | 2 x USB 2.0 |
| Network Interface | 4 x RJ-45 (10/100 Mbps, self-adaptive) for IP cameras 1 x RJ-45 (10/100 Mbps, self-adaptive) for LAN/WAN |
| PoE | |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Max. User Access | Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (10 sub & 2 main) |
