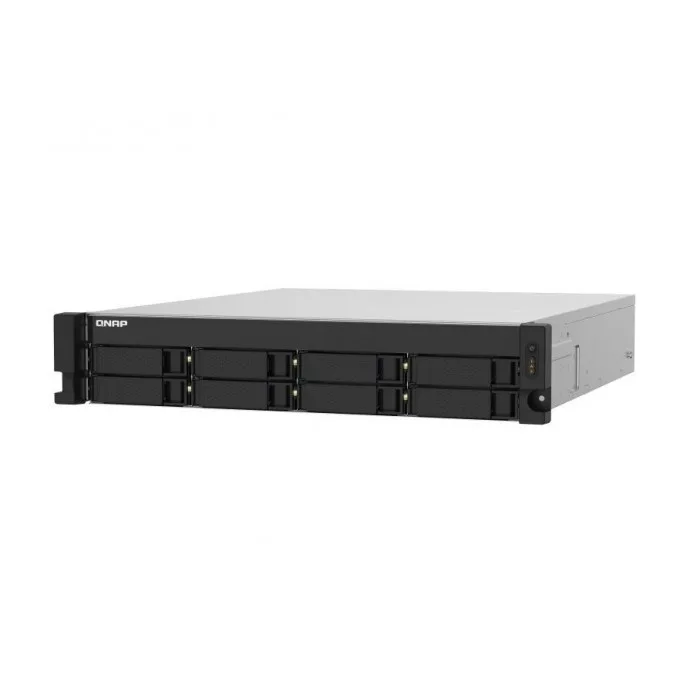

QNAP QNAP TS-832PXU-RP
Description
- CPU
- AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
- CPU Architecture 64-bit ARM
- Floating Point Unit
- OK
- Encryption Engine
- OK
- System Memory
- 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory
- 16 GB (1 x 16 GB)
- Memory Slot
- 1 x UDIMM DDR4
- Flash Memory
- 512 MB (Dual boot OS protection)
- Drive Bay
- 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility
- 3.5-inch bays:
- 3.5-inch SATA hard disk drives
- 2.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
- Hot-swappable
- OK
- M.2 Slot
- Optional via a PCIe adapter
- SSD Cache Acceleration Support
- OK
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
- 2 (also support 10M)
- 10 Gigabit Ethernet Port
- 2 x 10GbE SFP+
- Wake on LAN (WOL)
- Only the 2.5GbE port
- Jumbo Frame
- OK
- PCIe Slot
- 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance.
- USB 3.2 Gen 1 port
- 4
- Form Factor
- 2U Rackmount
- LED Indicators
- HDD 1-8, Status, LAN, Storage expansion
- Buttons
- Power, Reset
- Dimensions (HxWxD)
- 89 × 482 × 534 mm
- Weight (Net)
- 10.94 kg
- Weight (Gross)
- 16.87 kg
- Operating temperature
- 0 – 40 °C (32°F – 104°F)
- Storage Temperature
- -20 – 70°C (-4°F – 158°F)
- Relative Humidity
- 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit
- 250W (x2) PSU, 100 – 240V
- Power Consumption: Operating Mode, Typical
- 69.191 W
- Tested with drives fully populated.
- Fan
- 2 x 70mm, 12VDC
- System Warning
- Buzzer
- Max. Number of Concurrent Connections (CIFS) – with Max. Memory
- 700
