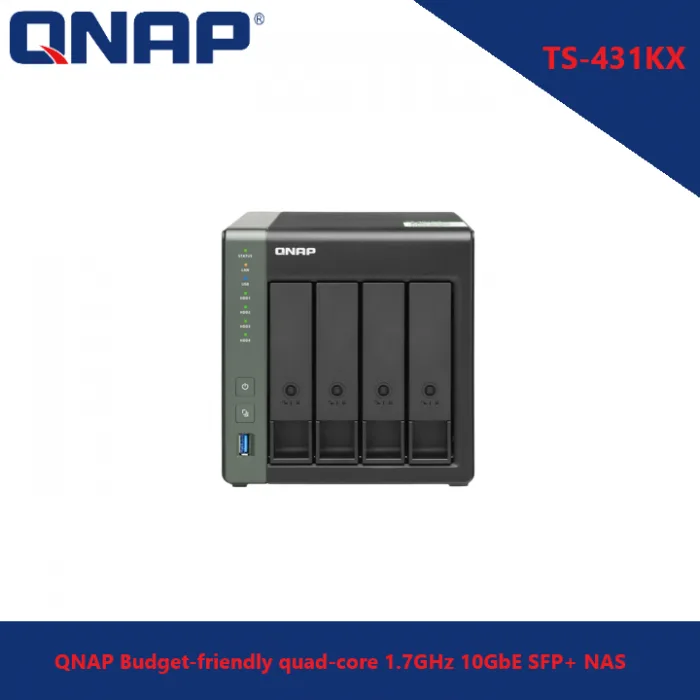

QNAP QNAP TS-431KX
CPU:
AnnapurnaLabs, an
Amazon company Alpine AL214, 4-core, 1.7GHz
CPU Architecture:
32-bit
ARM
Floating Point Unit:
YES
Encryption Engine:
YES
System Memory:
2 GB
SODIMM DDR3 (1 x 2 GB)
Maximum Memory:
8 GB (1
x 8 GB)
Memory Slot:
1 x SO-DIMM
DDR3
Flash Memory:
512 MB
(Dual boot OS protection)
Drive Bay:
4x 3.5-inch
SATA 6Gb/s, 3Gb/s
Drive Compatibility:
3.5-inch
bays:
3.5-inch SATA hard disk
drives
2.5-inch SATA hard disk
drives
2.5-inch SATA solid
state drives
Hot-swappable:
SSD Cache Acceleration
Support:
Gigabit Ethernet Port
(RJ45):
2
10 Gigabit Ethernet Port:
1 x 10GbE SFP+
Wake on LAN (WOL):
Only the 1GbE port
Jumbo Frame:
USB 3.2 Gen 1 port: 3
Form Factor:
Tower
LED Indicators:
Power,
Status, LAN, USB, HDD1-4
Buttons:
Power, Reset,
USB Auto Copy
Dimensions (HxWxD):
169
× 160 × 219 mm
Weight (Net):
2.01 kg
Weight (Gross):
3.47 kg
Operating Temperature:
0
– 40 °C (32°F – 104°F)
Storage Temperature:
-20
– 70°C (-4°F – 158°F)
Relative Humidity:
5-95%
RH non-condensing, wet bulb: 27ËšC (80.6ËšF)
Power Supply Unit:
90W
adapter (12VDC),
100-240VAC
Power Consumption:
HDD
Sleep Mode: 11.65 W
Power Consumption:
Operating
Mode, Typical: 26.7 W
Tested with drives fully
populated.
Fan: 1 x 120mm, 12VDC
System Warning:
Buzzer
Kensington Security Slot:
Max. Number of
Concurrent Connections (CIFS) – with Max. Memory: 400
