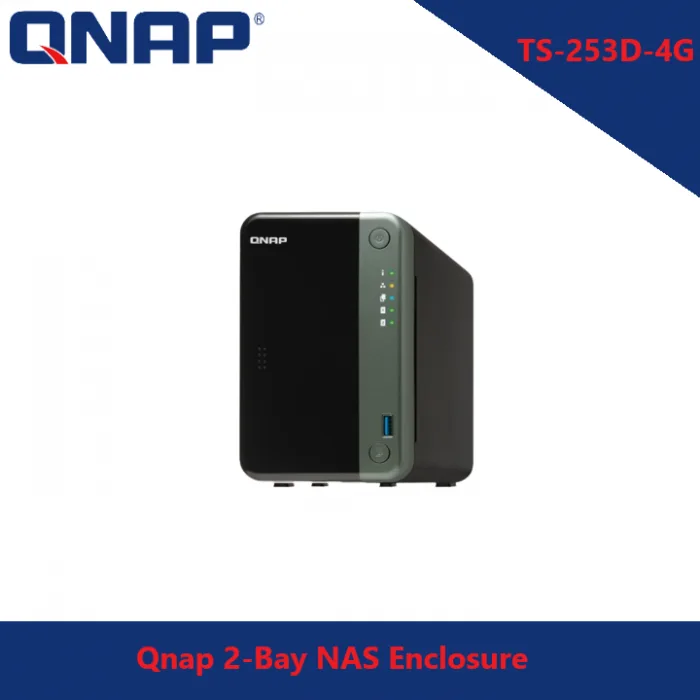

QNAP QNAP TS-253D-4G
Description
2.5GbE Network Connection
The TS-253D features dual 2.5GbE RJ45 LAN ports that can transfer up to 295 MB/s over a single connection or 588 MB/s when both ports are in use.
Network Storage
You can install up to two 3.5″ or 2.5″ SATA III 6 Gb/s drives into the TS-253D, set to RAID 0, 1, JBOD, or Single configuration. Backup your data, share media across your network, and archive your file library. Your data is secured by an AES-NI encryption engine that is designed to maintain performance while keeping your data safe. Installing an optional solid-state acceleration cache helps to maximize performance for data-intensive applications.
Power and Performance
Featuring a 2.0 GHz Intel Celeron J4125 quad-core processor with up to 2.7 GHz burst speeds and 4GB of DDR4 memory, the TS-253D can load a variety of QNAP QTS applications while managing up to 800 concurrent connections.
Windows and Mac Backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows computers. Apple’s Time Machine is supported for backing up Mac computers.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and a block-level feature makes it a dependable data protection method in the face of growing ransomware threats. The TS-253D supports up to 256 snapshots per volume/LUN, and up to 1024 snapshots per NAS.
One 2.5GbE Is Better than Two 1GbE for Increasing HBS Backup Efficiency
With a single 2.5GbE connection, no complex link aggregation settings are required for speeds up to 312.5 MB/s, which easily beats a paired 1GbE connection. The TS-253D has two 2.5GbE ports, further doubling performance and increasing efficiency for versatile tasks.
Hybrid Backup Sync (HBS) consolidates backup and synchronization functions for easily transferring data from the TS-253D to local, remote, and cloud storage spaces. HBS also supports QuDedup technology which removes duplicated data at the source, further accelerating backup and restoration tasks over 2.5GbE connections.
Abundant I/O Capability with PCIe Expansion
The TS-253D features one PCIe 2.0 slot that allows for various expansion cards for expanding application potential.
5GbE/10GbE Network Card
Enable fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
QM2 M.2 SSD/10GbE Card
Adds M.2 SSD caching or 10GbE connectivity to the NAS for optimized performance and bandwidth.
Wi-Fi 6 Wireless Adapter
Install a PCIe Wi-Fi 6 (802.11ax) network adapter, based on the Intel AX200, in your NAS to create a Wi-Fi 6 network environment.
Wireless Adapter
Turn your NAS into a wireless access point or a base station by installing a QNAP QWA-AC2600 wireless adapter and the WirelessAP Station app.
SSD Caching and Auto-Tiering Enable 24/7 Optimized Storage Efficiency
While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-253D supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.
SSD Over-Provisioning
You can add additional SSD over-provisioning (1% ~60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs.
SSD Cache Acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volumes. This feature is good for IOPS-demanding applications including databases and virtualization. The TS-253D also supports write-only cache to boost write-intensive applications.
Qtier for Auto-Tiering
Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.
4K HDMI Display and Real-Time Video Transcoding
The TS-253D has an HDMI 2.0 port that supports 4K (4096 x 2160) 60 Hz output, allowing you to directly view multimedia content saved on the NAS on a bigger screen. The support of high-quality 4K video transcoding enables the NAS to convert videos to universal file formats that can be smoothly played on multiple devices. The TS-253D also can stream videos through DLNA, Chromecast, and more to satisfy versatile multimedia application needs. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize individual button actions, providing a more user-friendly NAS experience.
Note: The TS-253D’s hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
Build a Plex Media Server
By installing Plex Media Server from App Center, setting up the Plex Media Server on your NAS is only a few minutes away. You can stream media files stored on the TS-253D to mobile devices and media streaming devices, including DLNA, Roku, Amazon Fire TV, and Google Chromecast.
Note: PlexPass is required for Plex Media Server hardware transcoding.
Move Business Data to the Cloud Flexibly and Economically
The TS-253D integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is good for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes, such as addition, modification, or deletion. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
All-in-One Server to Host Virtual Machines and Containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. You can use Network & Virtual Switch to allocate adequate physical network resources to virtual machines, containers, and the NAS to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, and Android virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import and export containers, and create abundant microservices.
