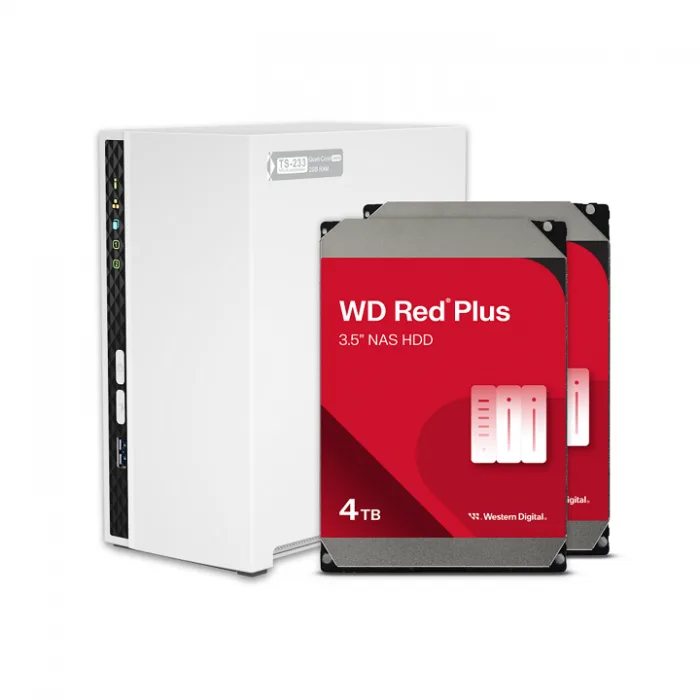

QNAP QNAP TS-233-24WD-US
CPU ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture 64-bit ARM
Graphic Processors Mali-G52
Floating Point Unit Yes
Encryption Engine Yes
Neural Processing Unit (NPU) Yes
System Memory 2 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 2 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
Gigabit Ethernet Port (RJ45) 1
Wake on LAN (WOL) Yes
Jumbo Frame Yes
USB 2.0 port 2
USB 3.2 Gen 1 port 1
Form Factor Tower
LED Indicators System Status, LAN, USB, HDD1-2
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 7.32 x 3.61 x 6.2 inch
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 3.73 lbs
Weight (Gross) 4.17 lbs
Operating Temperature 0 – 40 C (32F – 104F)
Storage Temperature -20 – 70C (-4F – 158F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: Disk Standby Mode 3.43
Power Consumption: Operating Mode, Typical 10.81 W
Tested with drives fully populated.
Fan 1 x 80mm, 12VDC
System Warning Buzzer
