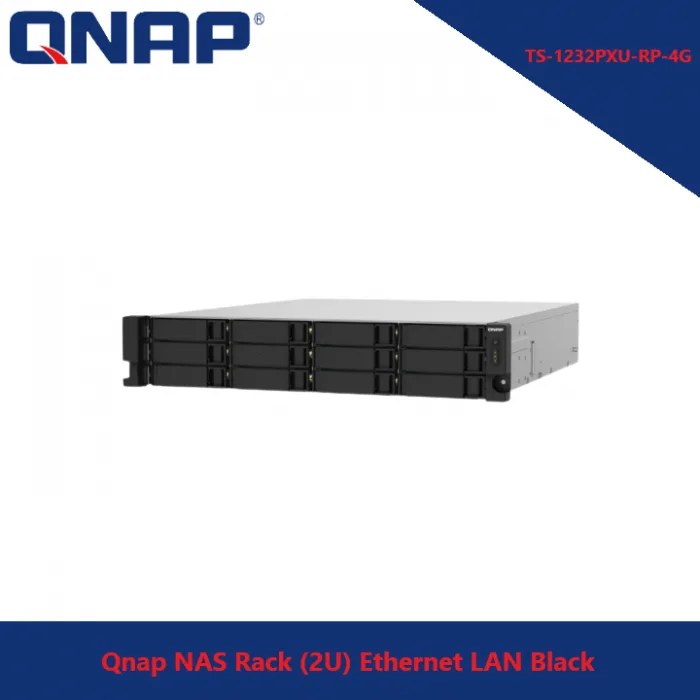

QNAP QNAP TS-1232PXU-RP-4G
Description
Processor
- Processor manufacturer
- Annapurna Labs
- Processor family
- Annapurna Labs
- Processor model
- AL324
- Processor frequency
- 1.7 GHz
- Processor cores
- 4
Memory
- Internal memory type
- DDR4
- Internal memory
- 4 GB
- Maximum RAM supported
- 16 GB
- Memory slots
- 1
- Memory form factor
- UDIMM
- Flash memory
- 512 MB
Performance
- Type
- NAS
- Device class
- Small & Medium Business
- Backup function
- Y
- Backup features
- Cloud,iSCSI LUN
- Buzzer
- Y
- Multilingual support
- Y
- Noise level
- 32.2 dB
- Snapshot
- Y
- Security algorithms
- 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
- Access Control List (ACL)
- Y
- Web-based management
- Y
- Reset button
- Y
- On/off switch
- Y
- Built-in FTP server
- Y
- Browser supported
- Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
- System log
- Y
- Hot spare
- Y
- S.M.A.R.T. support
- Y
- Share folder
- CIFS/SMB
- Universal Plug and Play (UPnP)
- Y
- USB copy function
- Y
Design
- Chassis type
- Rack (2U)
- Cooling type
- Active
- Product colour
- Black
- Number of fans
- 2 fan(s)
- Fan diameter
- 7 cm
- LED indicators
- HDD,LAN,Status
Storage
- Storage drives installed
- N
- Installed storage drive type
- N
- Supported storage drive types
- HDD & SSD
- Number of storage drives supported
- 12
- Supported storage drive interfaces
- Serial ATA II,Serial ATA III
- Storage drive sizes supported
- 2.5,3.5 “
- RAID support
- Y
- RAID levels
- 0,1,5,6,10,JBOD
- Online RAID migration
- Y
- Online RAID expansion
- Y
- RAID rebuild
- Y
- Hot-swap drive bays
- Y
- Supported file systems
- FAT32,HFS+,NTFS,ext3,ext4
- Bad block scan
- Y
Network
- Ethernet LAN
- Y
- Ethernet LAN data rates
- 100,1000,2500,10000 Mbit/s
- Ethernet LAN data rate supported (max)
- 10000 Mbit/s
- DHCP client
- Y
- DHCP server
- Y
- Jumbo frames support
- Y
- iSCSI support
- Y
- Wake-on-LAN ready
- Y
- Supported network protocols
- PPTP, L2TP/IPSec, OpenVPN, QBelt
- Link aggregation
- Y
- Load balancing system
- Y
- WLAN adapter supported
- Y
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB port
- Y
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Fiber ports quantity
- 2
- Fiber optic connector
- SFP+
Power
- Power supply location
- Built-in
- Power supply unit (PSU) capacity
- 250 W
- Number of power supply units
- 2
- Power consumption (typical)
- 83.57 W
- AC input voltage
- 100 – 240 V
- Fan voltage
- 12 V
Operational conditions
- Operating temperature (T-T)
- 0 – 40 °C
- Operating relative humidity (H-H)
- 5 – 95 %
Packaging content
- Cables included
- AC,LAN (RJ-45)
- Number of screws
- 84
Weight & dimensions
- Width
- 482 mm
- Depth
- 534 mm
- Height
- 89 mm
- Weight
- 11.3 kg
- Package weight
- 17.3 kg
Software
- Operating system installed
- QNAP Turbo System
- Operating system version
- 4.4.3
- Windows operating systems supported
- Windows 10,Windows 7,Windows 8
- Linux operating systems supported
- Y
- Mac operating systems supported
- Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina
- Server operating systems supported
- Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
