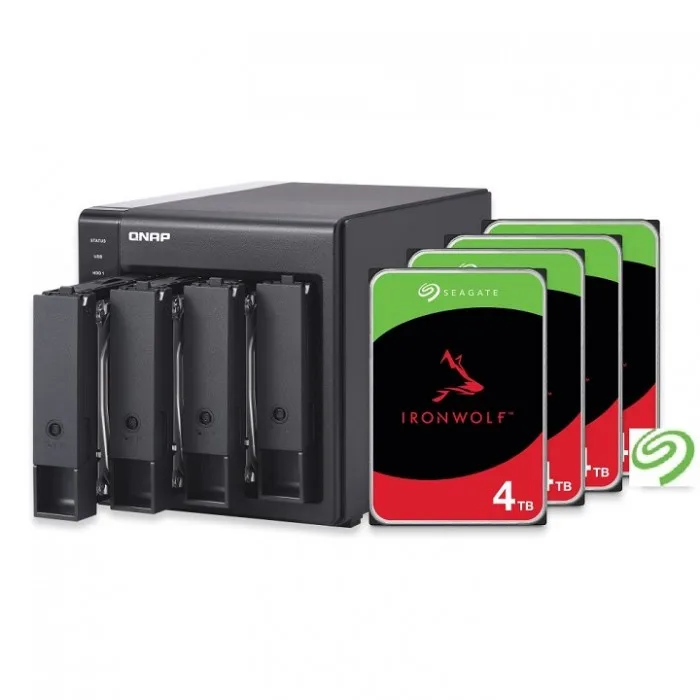

QNAP QNAP TR-004-US
JBOD Connection Interface USB
Main chip Micro processor with hardware RAID
Drive Bay 4 x 3.5-inch
Drive Compatibility 3.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s)
2.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s hard drives with backward compatibility, performance limited to 3Gb/s)
2.5-inch SATA 3Gb/s slot (supports SATA 6Gb/s solid state drives with backward compatibility, performance limited to 3Gb/s)
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-004 does not support the QDA-A2AR/ QDA-A2MAR.
Hot-swappable Yes
USB 3.2 Gen 1 Port 1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)
Form Factor Tower
Dimensions (HxWxD) 6.63 x 6.31 x 8.62 inch
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 7.01 lbs
Weight (Gross) 7.01 lbs
Operating Temperature 0 – 40 C (32F – 104F)
Storage Temperature -20 – 70C (-4F – 158F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit Minimum 60W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode 4.17 W
Power Consumption: Operating Mode, Typical 18.21 W
Tested with drives fully populated.
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
QTS / QuTS hero Yes
Windows Yes
Ubuntu Yes
Mac Yes
Used as Hardware RAID (DAS) Yes
RAID 10 Yes
RAID 5+ Spare Yes
RAID 5 Yes
RAID 1 Yes
RAID 0 Yes
JBOD Yes
Single Disk Yes
