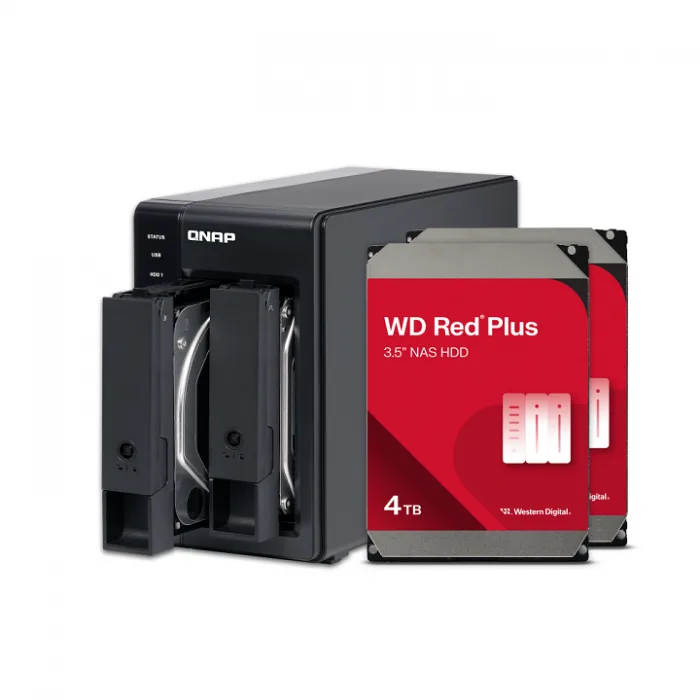

QNAP QNAP TR-002-US
JBOD Connection Interface USB
Main chip Micro processor with hardware RAID
Drive Bay 2 x 3.5-inch
The system is shipped without HDD. For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility         3.5-inch bays:
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-002 does not support the QDA-A2AR/ QDA-A2MAR.
Hot-swappable Yes
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
Form Factor         Tower
Dimensions (HxWxD) 6.63 x 4.02 x 8.62 inch
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) Â Â Â Â Â Â Â Â 4.96 lbs
Weight (Gross) 4.96 lbs
Operating Temperature 0 – 40 C (32F – 104F)
Storage Temperature         -20 – 70C (-4F – 158F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit Minimum 36W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode 2.98 W
Power Consumption:Operating Mode, Typical 10.15 W
Tested with drives fully populated.
Fan         1 x 70mm, 12VDC
System Warning Buzzer
Kensington Security Slot         Yes
QTS / QuTS hero         Yes
Windows Yes
Ubuntu Yes
Mac Yes
Used as Hardware RAID (DAS) Yes
RAID 1 Yes
RAID 0 Yes
JBOD Yes
Single Disk         Yes
