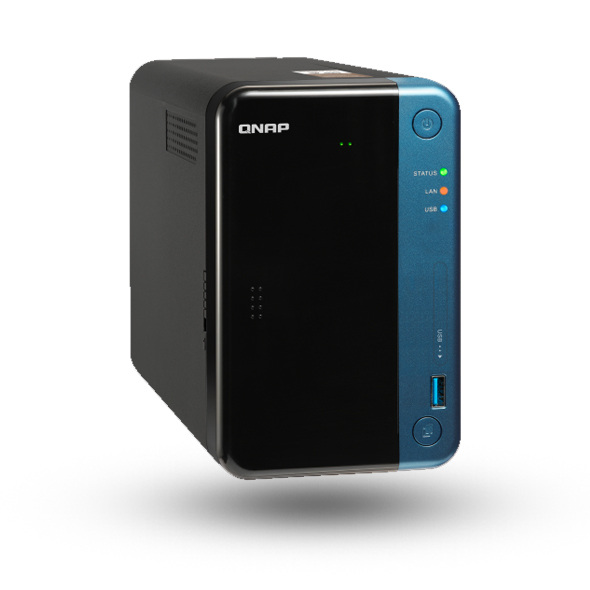

NAS BOX QNAP TS-253BE, 4GB, CELERON
Quad-core multimedia NAS with PCIe slot for diverse application expansion and greater efficiency
The TS-253Be features a simple physical design that can easily fit into office and home environments. It provides a PCIe port that can boost its functionality: a QNAP QM2 expansion card can be installed to add M.2 SSD caching/10GbE connectivity and support for Qtier auto-tiering technology, or a compatible wireless card can be installed to use the TS-253Be as a wireless access point. The TS-253Be also supports dual-channel 4K H.264 processing to provide a smooth media viewing experience on all connected devices. In addition, a wide range of productivity tools are available for use on the TS-253Be to improve work efficiency for media creators or creative professionals, while also enriching their multimedia experience.
Specification
HARDWARE SPECIFICATION
| CPU | Intel? Celeron? J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel? HD Graphics 500 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 4 GB SO-DIMM DDR3L (1 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SO-DIMM DDR3LFor dual-DIMM configuration, you must use a pair of identical DDR3L modules. |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/sThe system is shipped without HDD. For the HDD compatibility list, please visit?https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| M.2 SSD Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| Gigabit Ethernet Port (RJ45) | 2Expandable with an optional PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion cardOptional via PCIe expansion card |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen 2 (x2) |
| USB 3.0 port | 5 (Type-A ports) |
| USB 3.1 Gen 2 (10Gbps) Port | Optional via a PCIe expansion card |
| IR Sensor | Yes (RM-IR004, RM-IR002, & MCE) |
| HDMI Output | 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | 2 x 3.5mm microphone input jacks |
| Audio Output | speaker, 3.5mm line out jack |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, USB copy, Reset, Capacitive touch buttons (select, enter) |
| Dimensions (HxWxD) | 168 ? 105 ? 226 mm |
| Weight (Net) | 1.67 kg |
| Weight (Gross) | 2.82 kg |
| Operating temperature | 0 ? 40 ?C (32?F ? 104?F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27?C (80.6?F) |
| Power Supply Unit | External Power Adapter, 65W, 100-240V |
| Power Consumption: HDD Sleep Mode | 13.07 W |
| Power Consumption: Operating Mode, Typical | 20.42 W |
| Fan | 1 x 7 cm |
| Sound Level | 16.7 db(A) |
| Kensington Security Slot | Yes |
