QNAP QNAP ES1640dc v2

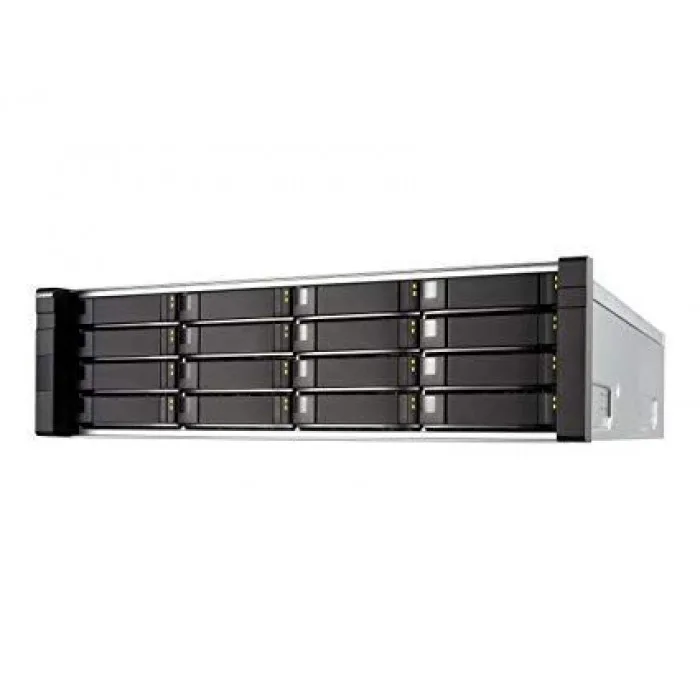

Qnap ES1640dc v2 NAS Network Storage
The ES1640dc v2 is powered by two Intel Xeon E5-2400 v2 processors and features dual active-active controller architecture, ensuring businesses with nearly zero downtime high availability as the standby controller can quickly take over if one controller breaks down. The ES1640dc v2 connects to the JBOD enclosure (EJ1600 v2) via the dual path mini-SAS design to sustain continuous operations even if an external JBOD cable is disconnected. Designed around redundancy, the ES1640dc v2 is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.
QNAP ES1640dc NAS specifications:
- Cache: mSATA SSD dedicated to NVRAM, SATA signaling
- Drive bays: 16
- Max Capacity: 160TB (10TB x 16)
- Compatible Drive Types: 3.5” SAS 6Gb/s HDD,2.5” SAS 6Gb/s HDD, 2.5” SAS 6Gb/s SSD
- External Ports:
- 2 x USB 3.0/2.0 port
- 1 x 10/100/1000 Mbps LAN Port/controller
- 2 x RJ45 (LAN-10G2T-X550)/controller
- PCIe slots
- PCIe Slot x8 (Gen2 x8): reserved for 40GbE or 10GbE LAN card
- PCIe Slot x4 (Gen2 x4): reserved for dual path Mini-SAS
- Power Consumption:
- Sleep mode: 314.86W
- Operation: 501.40W
- Supply: 770W
- Fan: Hot-swappable fan module (60x60x38mm; 16000RPM/12v/2.8A x 3)
- Dimensions
- Depth: 618mm
- Width: 446.2mm
- Height: 132mm
- Weight: 26.75kg / 58.97lb
- 16 x 2.5″/3.5″ SAS 12 Gb/s Drive Bays
- 2.2 GHz Intel Xeon E5-2420 v2 Six-Core
- 32GB DDR3 ECC RDIMM
- Active-Active Dual Controllers
