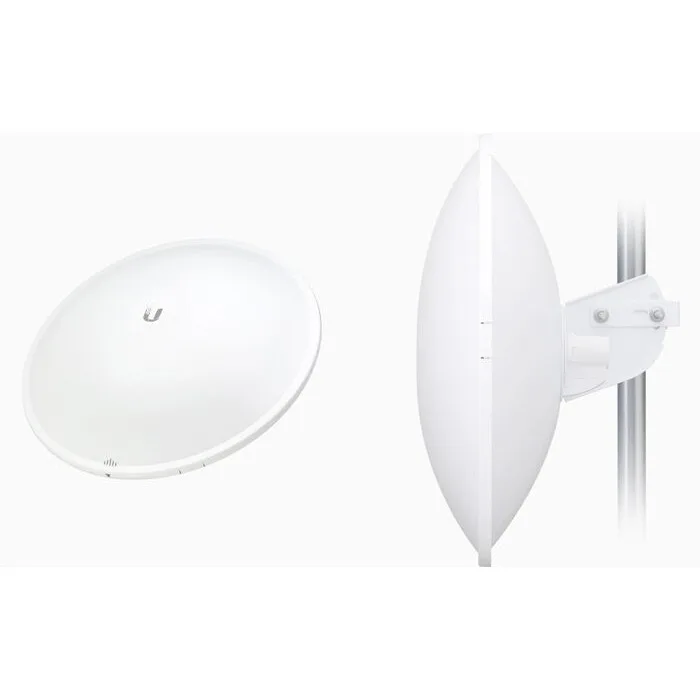

UBIQUITI POWER BEAM PBE M5 400
Dimensions 420 x 420 x 275 mm
(16.54 x 16.54 x 10.83″)
Weight (Mount Included) 1.753 kg (4.789 lb)
Gain 25 dBi
Output Power 26 dBm
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Max. TX Power 26 dBm
Power Supply 24V, 0.5A Gigabit PoE Adapter
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Mounting Pole Mounting Kit Included
Wind Survivability 200 km/h (125 mph)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
Operating Humidity 5 to 95% Noncondensing
Operating Temperature -40 to 70° C (-40 to 158° F)
Certifications CE, FCC, IC
