Specifications
| Note | NA |
| Cable Construction | Armored |
| Sub Brand | Opti-Core? |
| Environment | Outdoor |
| Fiber Type | OS2 |
| Number of Fibers | 4 |
| Fiber Diameter (?m) | 9 |
| Outer Diameter (In.) | 0.33 |
| Outer Diameter (mm) | 8.5 |
| Bend Radius (In.) | 2.16 |
| Bend Radius (mm) | 55 |
| Maximum Operating Temperature (?C) | 70 |
| Maximum Operating Temperature (?F) | 158 |
| Minimum Operating Temperature (?C) | -30 |
| Minimum Operating Temperature (?F) | -22 |
| Maximum Installation Temperature (?C) | 60 |
| Maximum Installation Temperature (?F) | 140 |
| Minimum Installation Temperature (?C) | -10 |
| Minimum Installation Temperature (?F) | 14 |
| Maximum Installation Tension (lb) | 224.81 |
| Maximum Installation Tension (N) | 1 |
| Resistance Properties | NA |
| Cable Color | Black |
| Flammability Rating | NA |

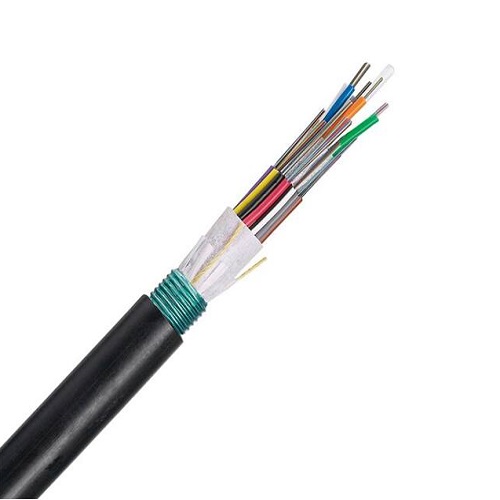

| Product Type | Outside Plant Armored Cable |
| Application | Cable Offers Gel-Filled Water-Blocking Technology, UV Resistance, and High Density to Provide Standards Compliance and Flexibility for Outdoor Use. |
| Connection Type | NA |
| Standards Met | ISO 11801 2nd edition, EN 50173-1:2002, IEC 60794-1, RoHS Compliant |
| Part Features | Cable offers gel-filled water-blocking technology, UV resistance, and high density to provide standards compliance and flexibility for outdoor use. |
