Specifications
| Note | N/A |

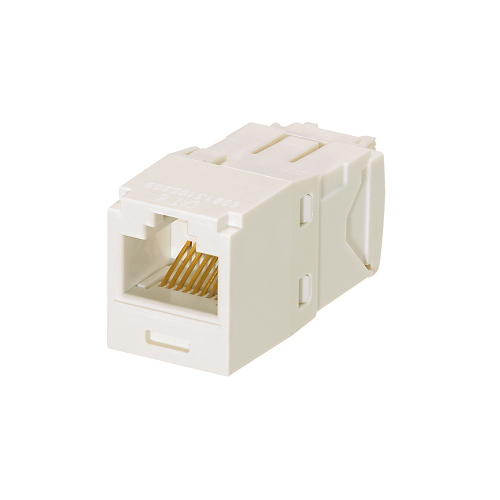

| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com? |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net? |
| Maximum Operating Temperature (?C) | 65 |
| Maximum Operating Temperature (?F) | 149 |
| Minimum Operating Temperature (?C) | -10 |
| Minimum Operating Temperature (?F) | 14 |
| Maximum Storage Temperature (?C) | 70 |
| Maximum Storage Temperature (?F) | 158 |
| Minimum Storage Temperature (?C) | -40 |
| Minimum Storage Temperature (?F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Arctic White |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
