| Model | NVR301-04LS2-P4 |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080p@25, 8 x 960p@25,8 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| External Interface | |
| Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ?10 W (without HDD) |
| Working Environment | -10?C ~ + 55?C (+14?F ~ +131?F), Humidity ? 90% RH (non-condensing) |
| Dimensions (W?D?H) | 205mm ? 205mm ? 46mm (8.1″?8.1″?1.8″) |
| Weight (without HDD) | 0.6kg (1.32 lb) |
-15%
IPC322LR3-UVSPF28-F 2MP EasyStar Vandal-resistant Network Fixed Dome Camera
Original price was: د.إ 120.00.د.إ 95.00Current price is: د.إ 95.00.

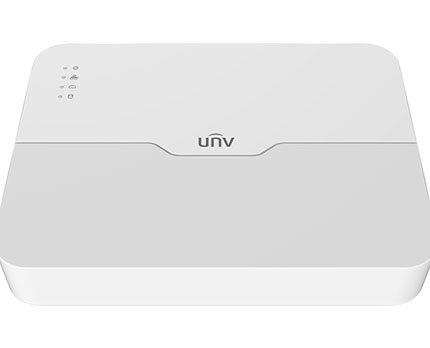

NVR301-08LS2-P8 8-ch 1-SATA Ultra 265/H.265/H.264 NVR
Original price was: د.إ 325.00.د.إ 303.00Current price is: د.إ 303.00.
NVR301-04LS2-P4 4-ch 1-SATA Ultra 265/H.265/H.264 NVR
Original price was: د.إ 260.00.د.إ 220.00Current price is: د.إ 220.00.
- ? Support Ultra 265/H.265/H.264 video formats
? 4-channel input
? Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
? Support 1-ch HDMI, 1-ch VGA
? HDMI and VGA simultaneous output
? Up to 6MP resolution recording
? 1 SATA HDD up to 6 TB
? Support cloud upgrade
