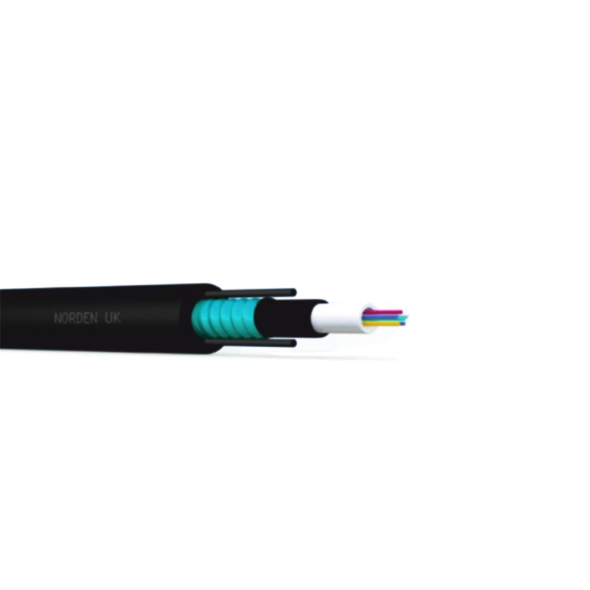

CENTRAL LOOSE TUBE ARMOURED EXTERNAL CABLE
These cables are constructed with a central tube filled with water blocking jelly, water blocking tape over the tube giving it excellent water and moisture resistance. A corrugated steel armouring and two steel wires strengthening within the outer PE sheath give this cable excellent tensile strength, mechanical and environmental protection.
They have a small diameter, is lightweight and is installation-friendly since they come in a single tube with loose tube fibre count up to 12 fibres. Their compact construction protects the loose tube from shrinking, the Armour makes it crush, rodent and impact-resistant, the waterproofing tape and jelly protect it from water and moisture, the outer PE sheath gives it ultraviolet protection.
This cable is suitable for external distribution through ducts, conductor aerial pipelines
MECHANICAL & ENVIRONMENTAL CHARACTERISTICS
Characteristics | Short Term | Long Term |
Max. Tensile Load | 2000 N | 1000 N |
Max. Crush Load | 1000 N/100 mm | 300 N/100 mm |
Operating Temp. | -20?C to +60?C | |
Storage Temp. | -40?C to +85?C | |
Sheath Material | Standard: PE Optional: LSZH, PVC or other |
