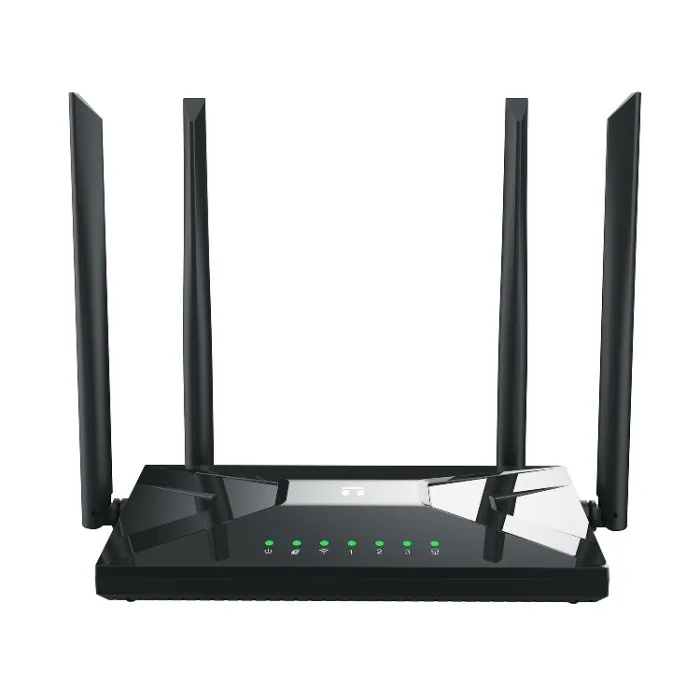

NETIS Netis NC65
WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3 Bedroom Houses
4x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 5/4 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams Connect your devices to more bandwidth
Working Modes AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode
HARDWARE
DDR/FLASH 128MB/8MB
Interface 1x Gigabit WAN Port + 3x Gigabit LAN Ports
Buttons WPS/MESH、RESET
Power 12V1A
SOFTWARE
WiFi Encryption WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK
Network Security Access Control, IP & MAC Binding
Guest Network 4*5GHz Guest Network /4*2.4GHz Guest Network
Protocols IPv4, IPv6
WAN Types DHCP, Static IP, PPPoE, L2TP, PPTP
Quality of Service QoS by Device
Forwarding Virtual Servers, DMZ, UPnP
IPTV Bridge, Tag VLAN
DHCP Address Reservation, DHCP Client List, DHCP Server
Access Control IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering
Dynamic DNS DynDns, no-ip
IGMP IGMP Proxy, IGMP Snooping
VPN PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through
Others Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore
PHYSICAL
Dimensions(W×D×H) 228*134*188mm
Package Contents 1* NC65
1* Power Adapter
1* RJ45 Ethernet Cable
1* Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS, EAC, UkrSEPRO
Environment Operating Temperature: 0℃~40℃ ( 32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power 2.4G: 22DB
5G: 19.5DB
