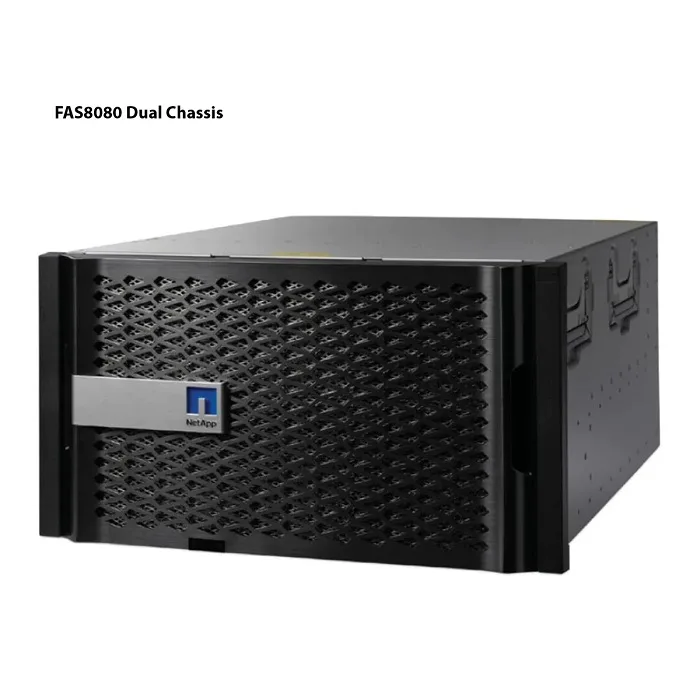

NetApp FAS8080AE-EX Dual Chassis HA Pair with IO Expansion Expansion Storage
Key features
FAS8000 hybrid storage systems are engineered specifically to address these needs. Powered by NetApp® ONTAP® data management software, the FAS8000 series unifies your SAN and NAS storage infrastructure. When FAS8000 systems are clustered with NetApp AFF all-flash arrays and integrated with the cloud, you have the control to easily move your data to where it’s needed for your business and place it in the storage environment that delivers the best combination of flash performance, storage capacity, and cost efficiency. With proven agility and data management capabilities, the FAS8000 has the flexibility to keep up with changing business needs while delivering on core IT requirements.
Category: Data Storage -NAS
Description
Specifications
Scale-Out FAS8080
NAS scale-out 1–24 nodes (12 HA pairs)
Maximum drives (HDD/SSD) 17,280/2,880
Maximum raw capacity 172PB
Maximum Flash Cache™ 576TB
Maximum Flash Pool™ 1728TB
Maximum memory 3072GB
SAN scale-out 1–12 nodes (6 HA pairs)
Maximum drives (HDD/SSD) 8,640/1,440
Maximum raw capacity 86PB
Maximum Flash Cache 288TB
Maximum Flash Pool 864TB
Maximum memory 1536GB
Cluster interconnect 2, 4, or 6 10GbE
Per HA Pair Specifications FAS8080 EX
Maximum drives (HDD/SSD) 1,440/240
Maximum raw capacity 14.4PB
Maximum Flash Cache 24TB
Maximum Flash Pool 144TB
Controller form factor 12U (2 enclosures)
ECC memory 256GB
NVRAM 32GB
PCIe expansion slots 24
Onboard I/O: UTA 2 (16Gb FC/FCoE/10GbE) 8
Onboard I/O: GbE 8
Onboard I/O: 10GbE 8
Onboard I/O: 6Gb SAS 8
OS version ONTAP 8.2.2 and later
Storage protocols supported FC, FCoE, iSCSI, NFS, pNFS, CIFS/SMB
Host/client operating systems supported Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows XP, Linux, Sun Solaris, AIX, HP-UX, Mac OS, VMware, ESX
