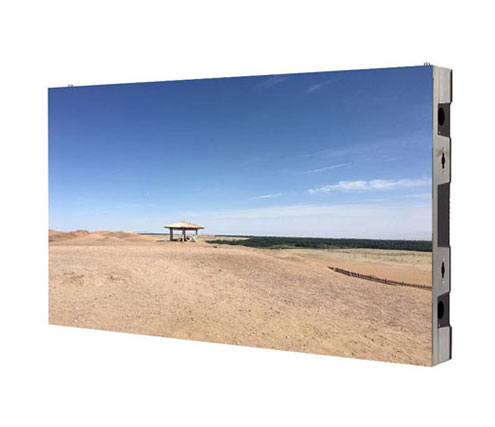

MW7209-E-U Indoor Fine Pixel LED

Specifications
Model MW7209-E-U
LED Module
Module type Mini four in one LED
Pixel pitch P0.9
Resolution (W?H) 172?192
Dimensions (W?H) 160 mm?180mm
LED Unit
Dimensions (W?H?D) 640mm?360mm?54.5mm
Modules Component(W?H) 4?2
Resolution(W?H) 688?384
Weight(Kg) 6.95
Screen Area 0.2304 m2
Pixel Density 1146666 pitch/ m2
Surface evenness ?0.1
Material Die-cast Aluminum
Optical
Single Pixel Brightness Correction Support
Single Pixel Color Correction Support
Brightness(nits) 50 to 700 adjustable
Color Temperature(K) 3000 to 10000 adjustable
Viewing Angle Horizontal 160?, Vertical 140?
Center distance deviation of LED ?2.5%
Brightness uniformity ?97%
Color uniformity ? ? 0.003 Cx, Cy
Contrast ?4000:1
Processing Performance
Grey Level 14 bit
Driving Mode Constant current driving, 1/48 scan
Frame Frequency 50/60 Hz
Refresh Rate 3840Hz
Electrical
Power Supply 100 to 240 V AC
Max Consumption 716 W/ m2
Average consumption 282 W/ m2
General
Maintenance Mode Front Maintenance
Ingress protection IP5X
Operation Temperature -10?C ~ 40 ?C
Operating Humidity 8%~85% (No Condensation)
Storage Temperature -10?C ~ 55?C
Storage Humidity 10%~90% (No Condensation)
Working Hours ?100,000
