Specifications

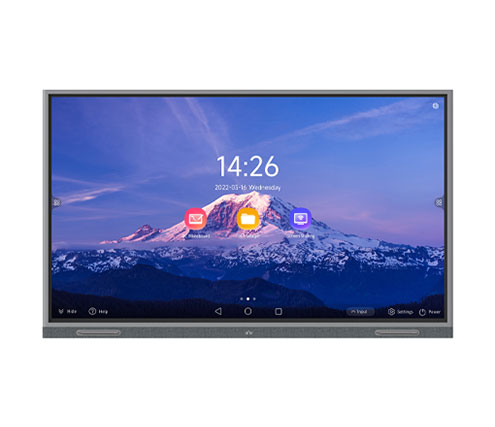

Model MW3565-U-S
Panel
Backlight DLED
Panel size 65 inches
Resolution 3840*2160
Brightness (cd/m?) 350
Contrast ratio 1200:1
Response time (ms) 8
Color support 1.07B
Viewing angle (H/V) 178?/178?
Android
CPU Quad-core Cortex 2*A53+Cortex 2*A73 and Mali G51 GPU
CPU frequency 1.5GHz
RAM DDR4: 3GB eMMC: 32GB
Android version Android 8.0
Touch
Touch control Infrared touch screen, 20-point multi-touch at most
Touch precision (mm) ?1
Recognizable object 5 points 2mm
Glass 4mm tempered glass, level 7 on Mohs hardness scale, anti-glare
Response time (ms) ?10
Touchscreen input Opaque objects (e.g. finger, pen, etc.)
Interface
Front interfaces 1*HDMI IN(4K)?2*USB 2.0
Side interfaces 2*USB 2.0?1*RS232?1*TOUCH OUT?2*HDMI IN(4K)?1*COAX
Bottom interfaces 1*LAN OUT?1*LAN IN?1*VGA IN?1*AUDIO IN?1*YPbPr?1*AV IN?1*AV OUT?1*AUDIO OUT
Audio
Speaker Left channel 17W: 1*treble (6? 5W) + 2*bass (6? 12W)
Right channel 17W: 1*treble (6? 5W) + 2*bass (6? 12W)
OSD
Language supported
24 (Simplified Chinese?Traditional Chinese?English?Japanese?Arabic?French?Spanish?
Portuguese?German?Italian?Dutch?Polish?Korean?Catalan?Galician?Vietnamese?Bulgarian?
Kazakh?Russian?Ukrainian?Thai?Uzbek?Hungarian?Croatian)
VESA
Wall mount hole (mm) 500*400
Wall mount screw 4-M8 screw hole
General
Power supply AC 100 to 240V, 50/60Hz
Typical power consumption (W) ?208
Standby power consumption (W) ?0.5
Operating temperature 0 to 50?C
Operating humidity 10% to 90% (non-condensing)
Storage temperature -20 to 60?C
Storage humidity 5% to 90% (non-condensing)
Product dimensions (W*H*D)(mm) 1498*905*89
Package dimensions (W*H*D)(mm) 1632*1081*222
Weight (kg) Net weight: 42.0
Gross weight:46.0
Accessories included 1*power cord?2*touch pen?1*quick guide
