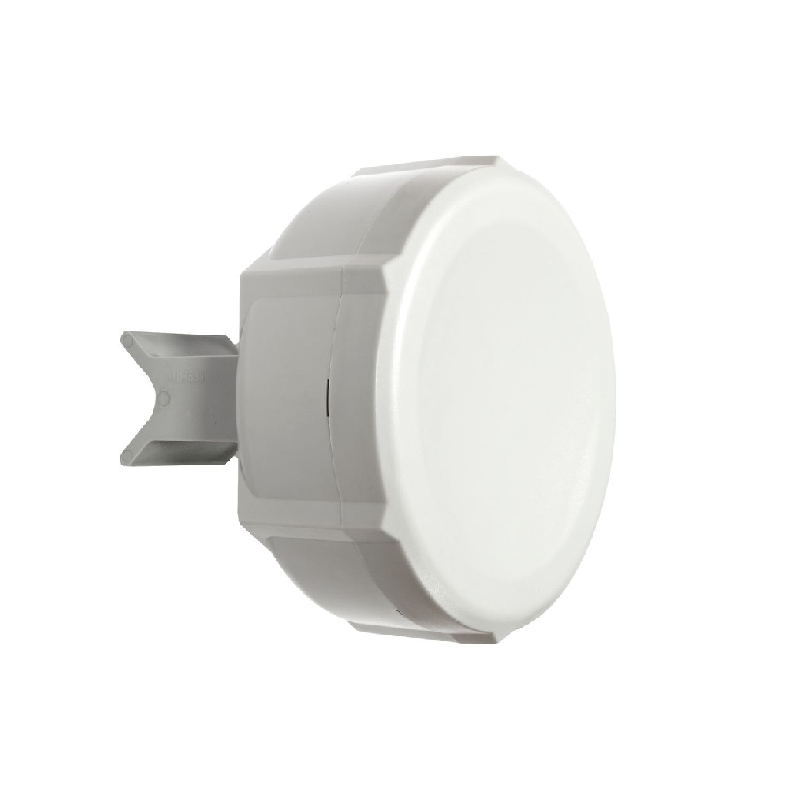

SXTG-5HPnD-SAr2 is a low cost, high speed 5GHz outdoor wireless sector access point. It has a 90 degree antenna to provide a wider coverage than our previous SXT units.
Complete with a ready to mount enclosure and built-in 14dBi antenna, the package contains everything you need to set it up in a matter of minutes. The inside of the case is covered in special shielding to improve operation in high interference areas and antenna front to back ratio.
Box contains: SXT wireless device with integrated antenna, pole mounting bracket, mounting ring, PoE injector, power adapter, quick setup guide
– RBSXTG-5HPnD-SAr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– RBSXTG-5HPnD-SAr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RBSXTG-5HPnD-SAr2 |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 140x140x56mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -30?C to 70?C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 6-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -80 |
| MCS0 | 30 | -95 |
| MCS7 | 26 | -73 |
