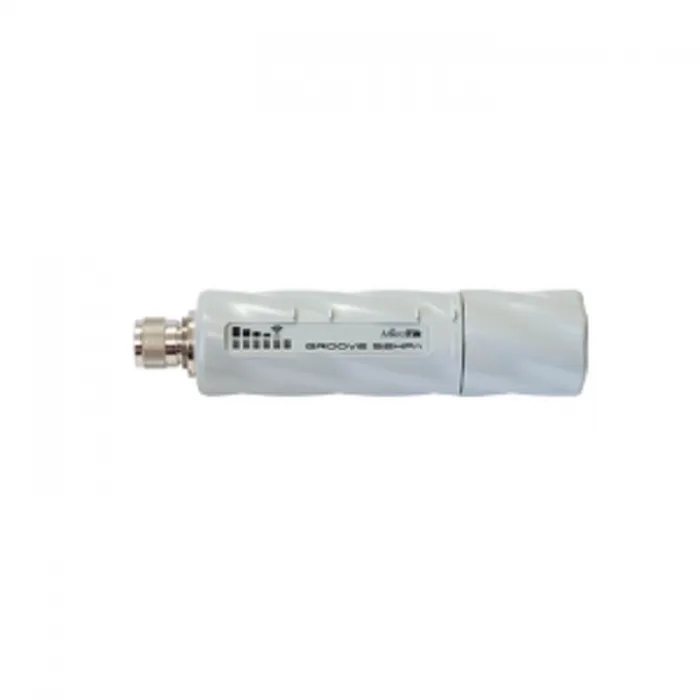

MikroTik Mikrotik RBGROOVE52HPN
Product code RBGroove52HPn
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 180x49x44mm, 193g
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40C to 70C
Powering
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V
Wireless specifications
Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains 1
Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n
Wireless 2.4 GHz/5 GHz chip model AR9342
Wireless 2.4 GHz/5 GHz generation Wi-Fi 4
Ethernet
10/100 Ethernet ports 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -97
11MBit/s 27 -91
6MBit/s 27 -93
54MBit/s 24 -75
MCS0 27 -93
MCS7 23 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 27 -93
54MBit/s 23 -75
MCS0 26 -93
MCS7 22 -70
