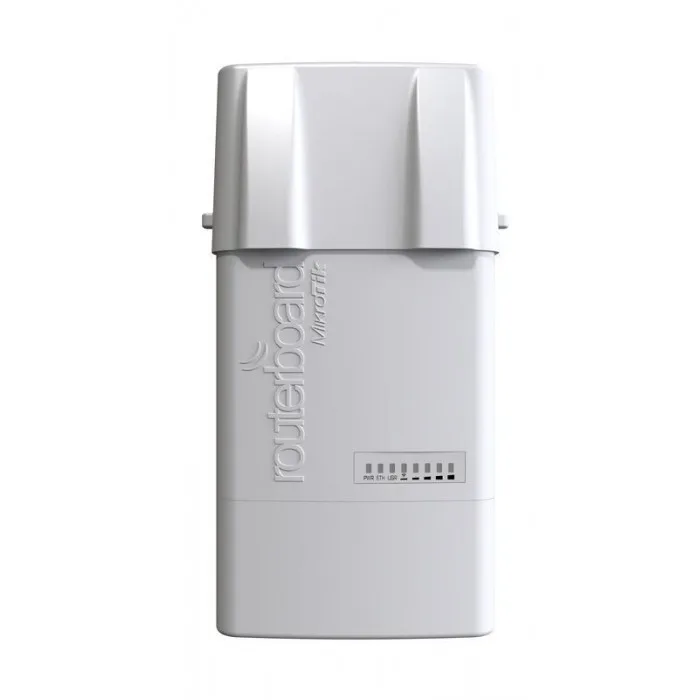

MikroTik MikroTik BaseBox 5
Specification
Details
- Product code RB912UAG-5HPnD-OUT
- Architecture MIPSBE
- CPU AR9342
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 246x135x50mm
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 128 MB
- Storage type NAND
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 8-30 V
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 12 W
Wireless
- Wireless 5 GHz Max data rate 300 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n
- Wireless 5 GHz chip model AR9342
- Wireless 5 GHz generation Wi-Fi 4
Ethernet
- 10/100/1000 Ethernet ports 1
Peripherals
- Number of SIM slots 1 Modem (Mini SIM)
- MiniPCI-e slots 1
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
