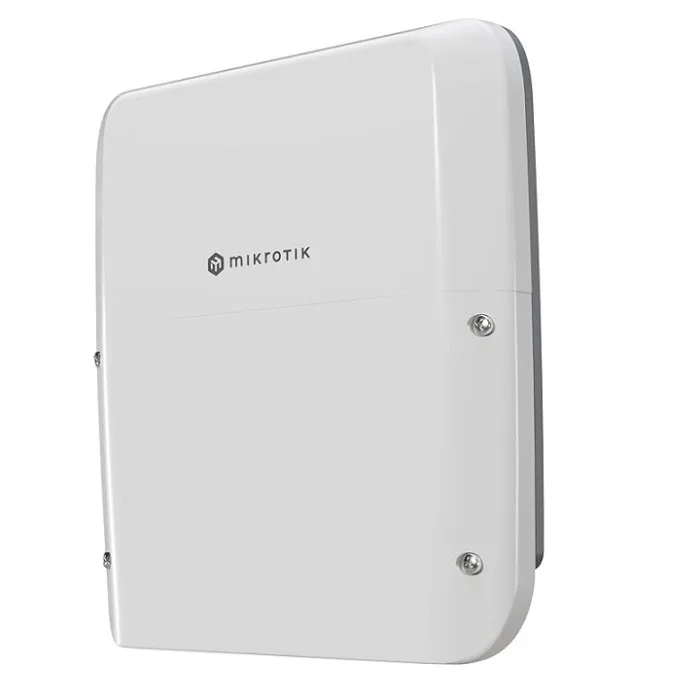

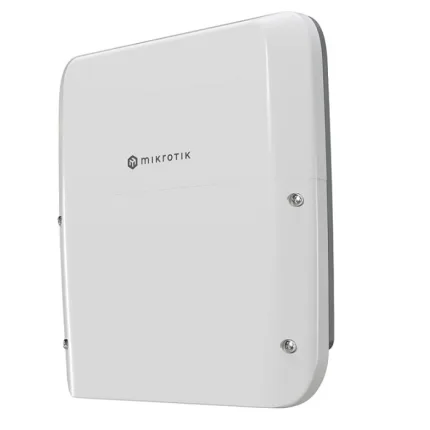

Mikrotik RB5009UPr+S+OUT
Product code RB5009UPr+S+OUT
CPU Quad-Core 88F7040 1.4 GHz
CPU architecture ARM 64bit
Size of RAM 1 GB
RAM type DDR4
Storage 1 GB, NAND
Number of 1G Ethernet ports 7
Number of 2.5G Ethernet ports 1
Number of 10G SFP+ ports 1
USB 1 USB 3 type A
Operating system RouterOS v7, License level 5
Switch chip model 88E6393
Dimensions 222 x 239 x 57 mm
Operating temperature -40°C to +70°C
Powering
PoE-in 802.3af/at
PoE-Out 802.3af/at Same voltage as supplied via 2-pin terminal – Passive PoE or 802.3af/at Compatible (if 44–57V PSU used)
PoE-Out ports Ether1 – Ether8, max out per port output (input < 30 V): 900 mA, max out per port output (input > 30 V): 440 mA
Smart PoE Controller
Max total out 2.59 A
Total output power 130 W
Total output current 2.28 A
Number of DC inputs 2
Supported input voltage 24-57 V (PoE in) 24-57 (2-pin terminal)
2-pin specifications 5.08mm 1x2pin
Max power consumption (without attachments) 15 W
Max power consumption 150 W
