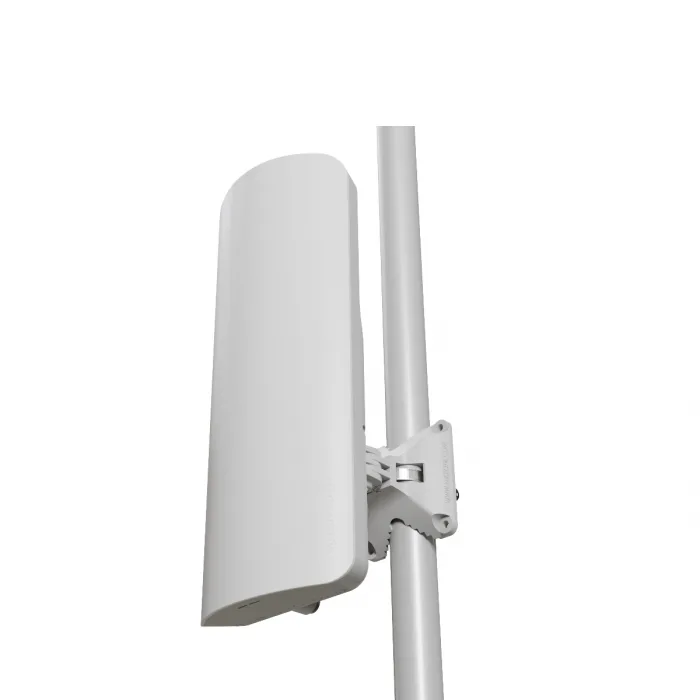

MikroTik MikroTik L22UGS-5HaxD2HaxD-15S
Specifications
Product code L22UGS-5HaxD2HaxD-15S
CPU Dual-Core IPQ-5010 800 MHz
CPU architecture ARM
Size of RAM 256 MB
Storage 128 MB, NAND
Number of 1G Ethernet ports 1
Number of 1G SFP ports 1 (2.5G supported)
USB port 1 USB 2.0 port type A
Concurrent clients per interface 128
Wireless interface model IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Antenna gain 2.4 GHz – 12 dBi, 5 GHz – 15 dBi
Dimensions 349 x 140 x 82 mm
Operating system RouterOS v7, License level 4
Operating temperature -40°C to +70°C
Powering
Number of DC inputs 2 (PoE-In, DC jack)
PoE-In input Voltage 18-28 V
DC jack input Voltage 12-28 V
Max USB current 1.5 A
Power adapter nominal voltage 24 V
Power adapter nominal current 1.2 A
PoE-In Passive PoE
Max power consumption (without attachments) 11 W
Max power consumption 21 W
Download MikroTik L22UGS-5HaxD2HaxD-15S Datasheet
