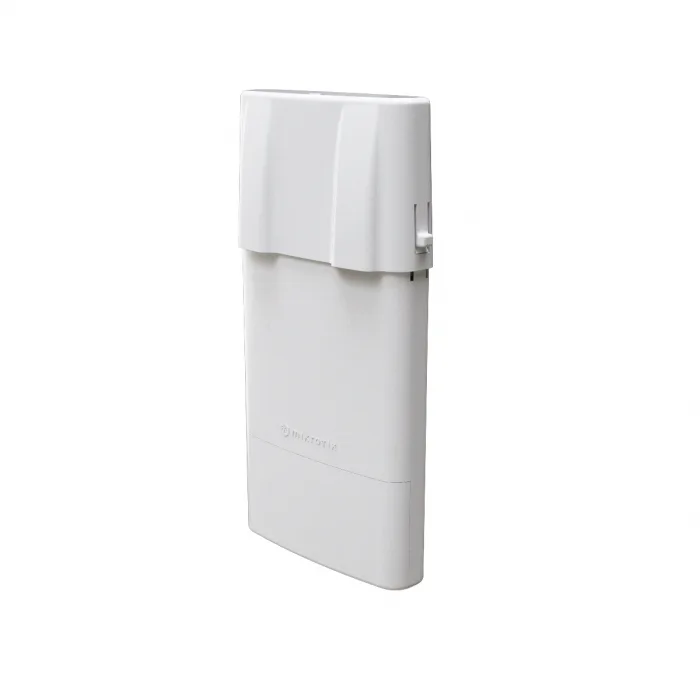

MikroTik MikroTik L11UG-5HaxD-NB
Specifications
Product code L11UG-5HaxD-NB
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 1 (PoE-IN)
Max power consumption 15 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
Wireless specifications
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports 1
Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 54
