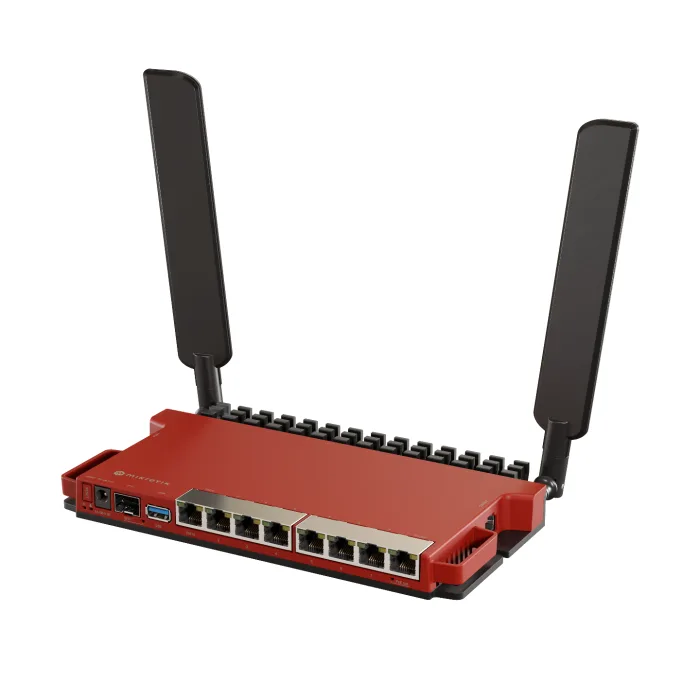

MikroTik MikroTik L009UiGS-2HaxD-IN
Product code L009UiGS-2HaxD-IN
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model IPQ-5018
Wireless 2.4 GHz generation Wi-Fi 6
WiFi speed AX600
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
SFP ports 1 (2.5G supported)
Peripherals
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 42 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1.0 A
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 20
Other
Mode button Yes
