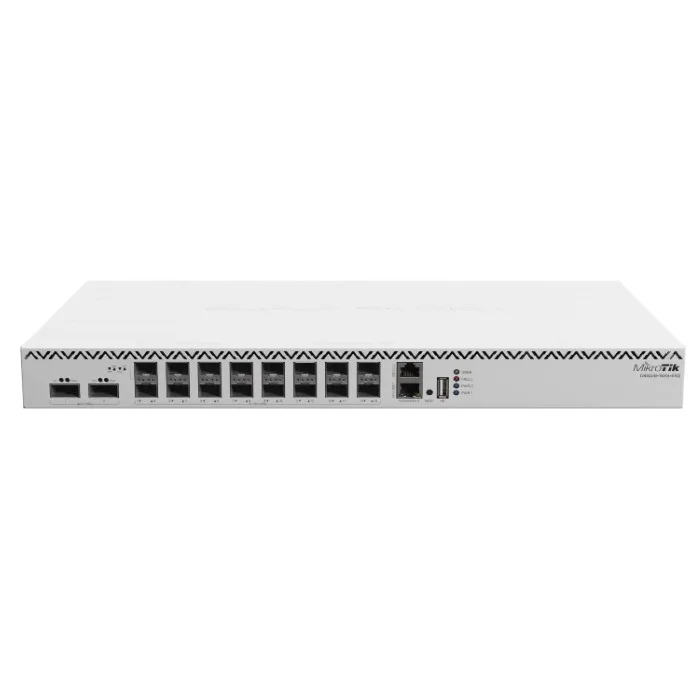

MikroTik Mikrotik CRS518 16XS 2XQ RM
Specifications
Details
Product code CRS518-16XS-2XQ-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX8525
RouterOS license 6
Operating System RouterOS (v7 only)
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 95 W
Max power consumption without attachments 45 W
Cooling type 4 fans
Ethernet
Details
10/100 Ethernet ports 1
Fiber
Details
Number of 25G SFP28 ports 16
Number of 100G QSFP28 ports 2
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
