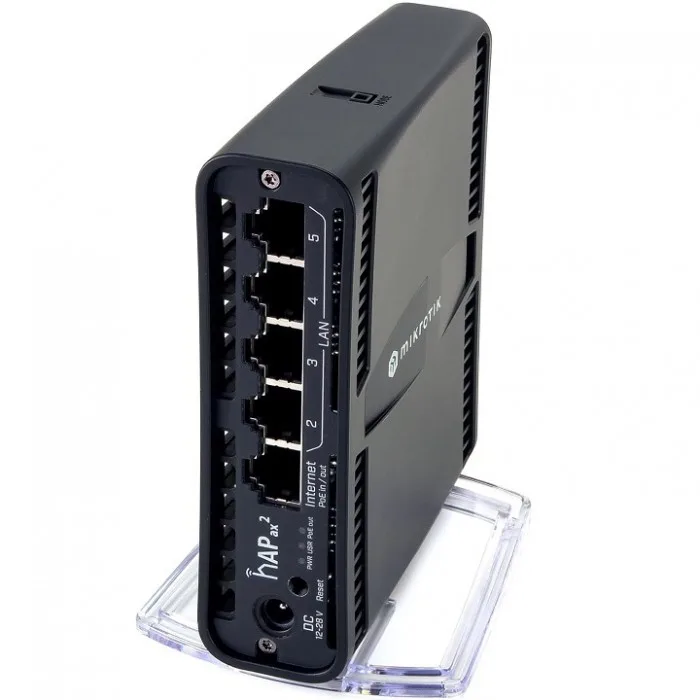

MikroTik Mikrotik C52iG-5HaxD2HaxD-TC
Product code C52iG-5HaxD2HaxD-TC
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency 864 MHz
Switch chip model IPQ-6010
Router OS license 4
Operating System Router OS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40C to 50C
IPsec hardware acceleration Yes
Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 4.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800
Ethernet
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 27 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
PoE-out
PoE-out ports Ether 1
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 0.6 A
Total output current 0.6
Total output power 16.8W
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 20
Other
CPU temperature monitor Yes
Mode button Yes
Download Mikrotik C52iG-5HaxD2HaxD-TC Datasheet
