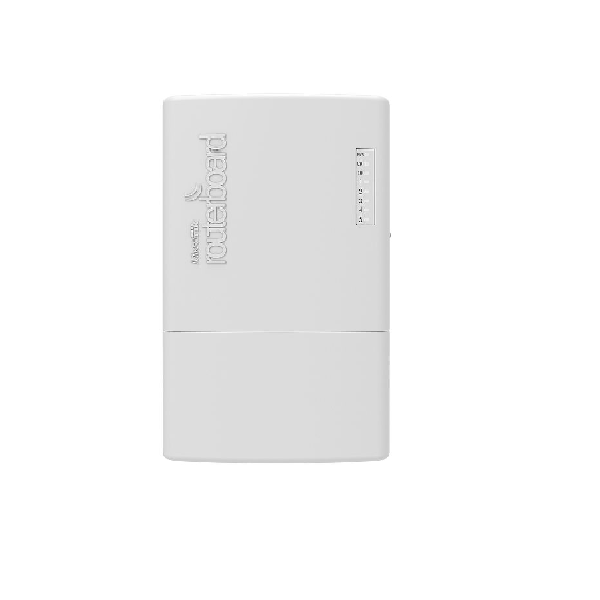

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Specifications
| Details |
| Product code |
RB960PGS-PB |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
800 MHz |
| Dimensions |
125 x 52 x 225 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100’000 hours at 25C |
| Tested ambient temperature |
-40?C to 70?C |
|
|
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
54 W |
| Max power consumption without attachments |
6 W |
| FAN count |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether2-Ether5 |
| PoE out |
802.3af/at |
| Max out per port output (input 18-30 V) |
1 A |
| Max out per port output (input 30-57 V) |
450 mA |
| Max total out (A) |
2 A |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
