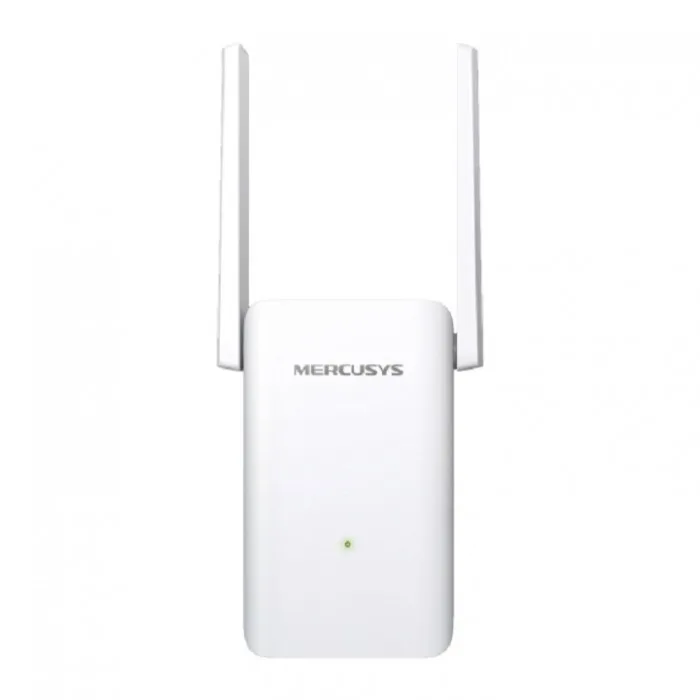

Mercusys Mercusys ME80X
Wireless
Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
Frequency 2.4GHz and 5GHz
WiFi Speeds 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz
Reception Sensitivity 5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -90dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -96dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm
Wireless Security WEP, WPA, WPA2, WPA3-PSK
Hardware
Dimensions 138.6 x 100.3 x 68.4 mm
Interfaces 1 Gigabit Ethernet Port
Button WPS / Reset Button
Antenna Type 2x External Antennas
Power Consumption 13W
Others
Certifications RoHS
Package Contents Wi-Fi Range Extender ME80X
Quick Installation Guide
Environment Operating Temperature: 0C-40C (32F-104F)
Operating Humidity: 10%-90% Non-Condensing
